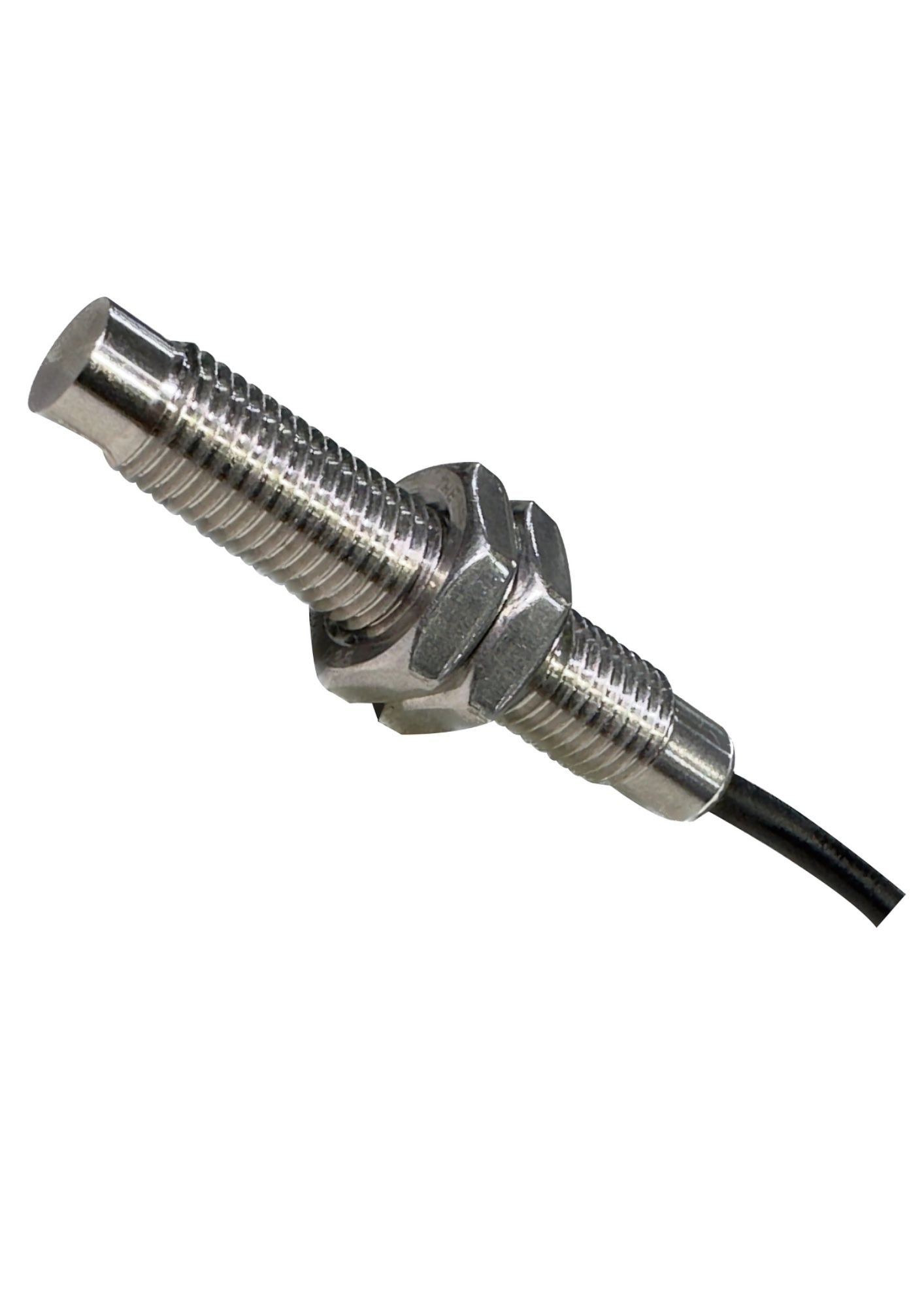

BIW8-PN3NF ||Full Stainless Steel Inductive Proximity Sensor, Diameter 8mm, Sensing Range 3mm, PNP NO
BIW8-PN3NF ||Full Stainless Steel Inductive Proximity Sensor, Diameter 8mm, Sensing Range 3mm, PNP NO

BIW8-PN3NF ||Full Stainless Steel Inductive Proximity Sensor, Diameter 8mm, Sensing Range 3mm, PNP NO

In stock
SKU
BIW8-PN3NF
Special Price ₹2,730.00 Regular Price ₹4,200.00
(18% GST Extra)
Add to Wish List
  • One piece stainless steel housing
  • Exceptionally resistant to water jets and aggressive cleansing agents
  • Resistant to sharp edged hot shavings
  • Easy to clean even using harsh methods is no problem
  • Pressure resistant up to 80 bar
  • Perfect solution to maintain clean and hygiene environment
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Function: Make PNP (NO)
  • Size: M8
  • Detecting Distance: 3mm
  • Standard sensing object: 8 x 8 x 1mm (Iron)
  • Detectable object: Ferrous metal 100%, The sensing distance decreases with non-ferrous metal i.e. stainless steel 60%, brass 50%, aluminum 40%, copper 30%
  • Response Frequency: 200Hz
  • Power Supply (Operating Voltage): 10 to 30 VDC, ripple (p-p)
  • Load current: 150mA
  • No load: <10mA
  • Leakage current: <0.01mA
  • Residual Voltage: <1.5V
  • Indicator: Operating LED indicator
  • Protection Circuit: Surge protection circuit, Over current, reverse polarity protection
  • Operating temperature: -25ºC ~ 70ºC
  • Insulation resistance: 50MΩ min (at 500VDC) between current-carrying parts and case
  • Dielectric strength: 1000VAC, 50/60 Hz for 1 minute between current-carrying parts and case
  • Degree of protection: IP67
  • Connection method: Pre-wired models - standard cable
  • Material: Stainless Steel
  • Weight: Approx. 30g
