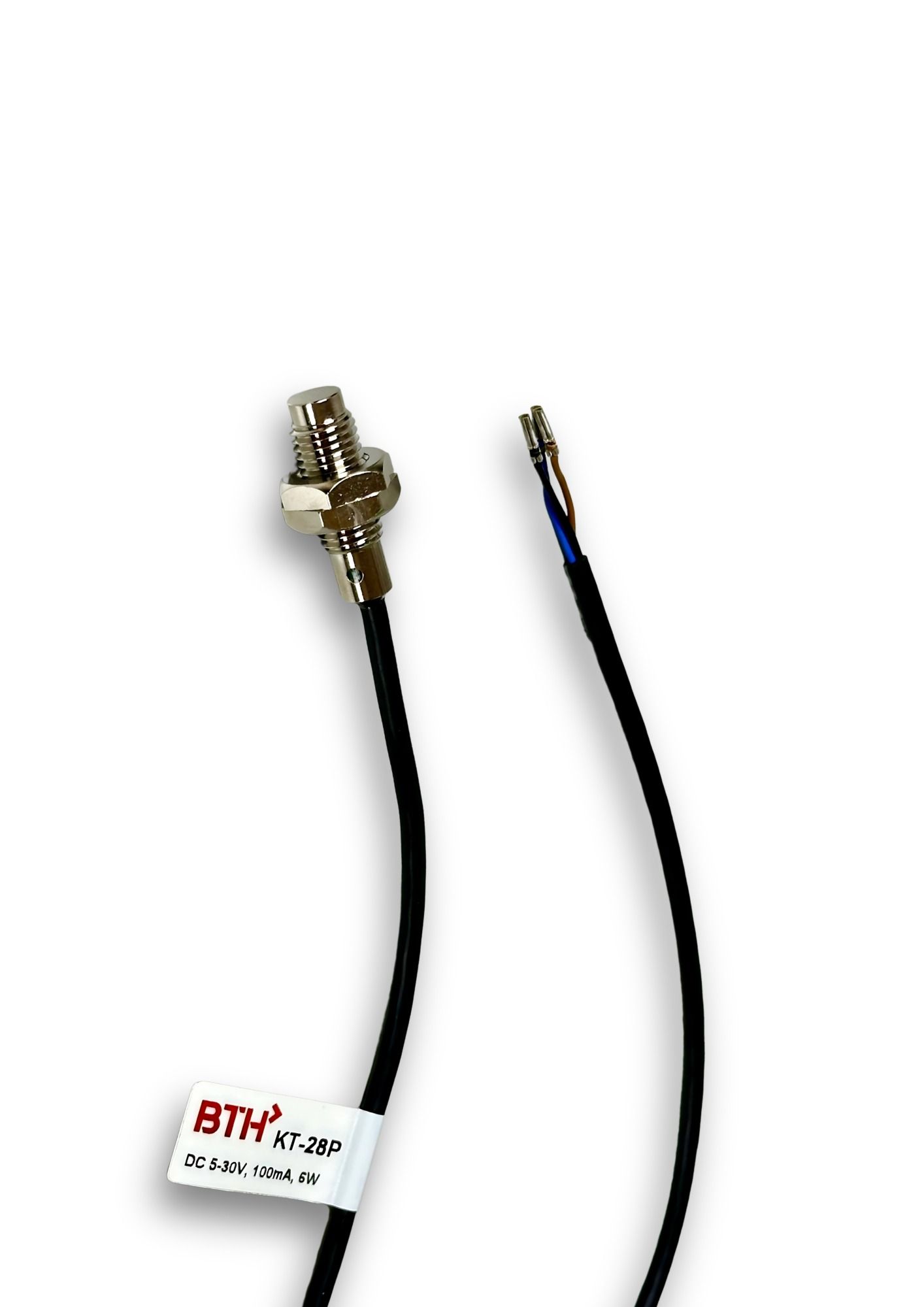

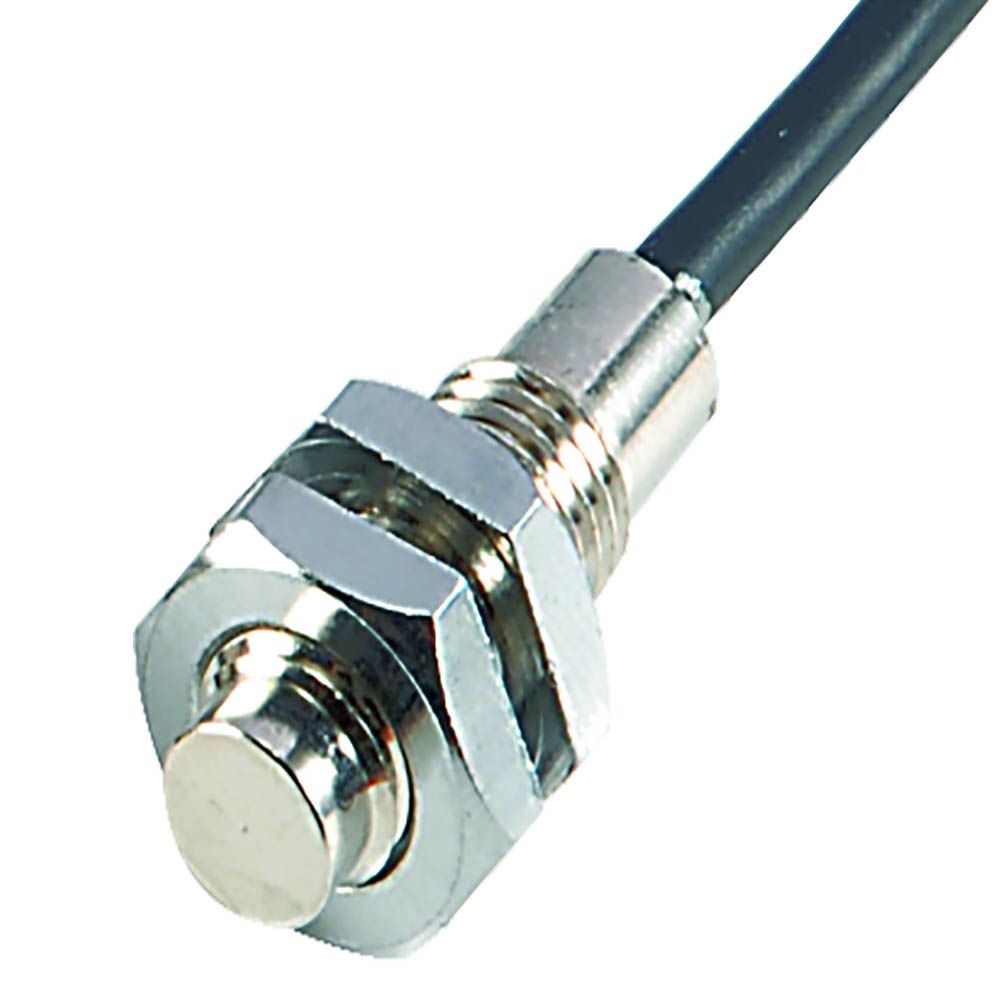

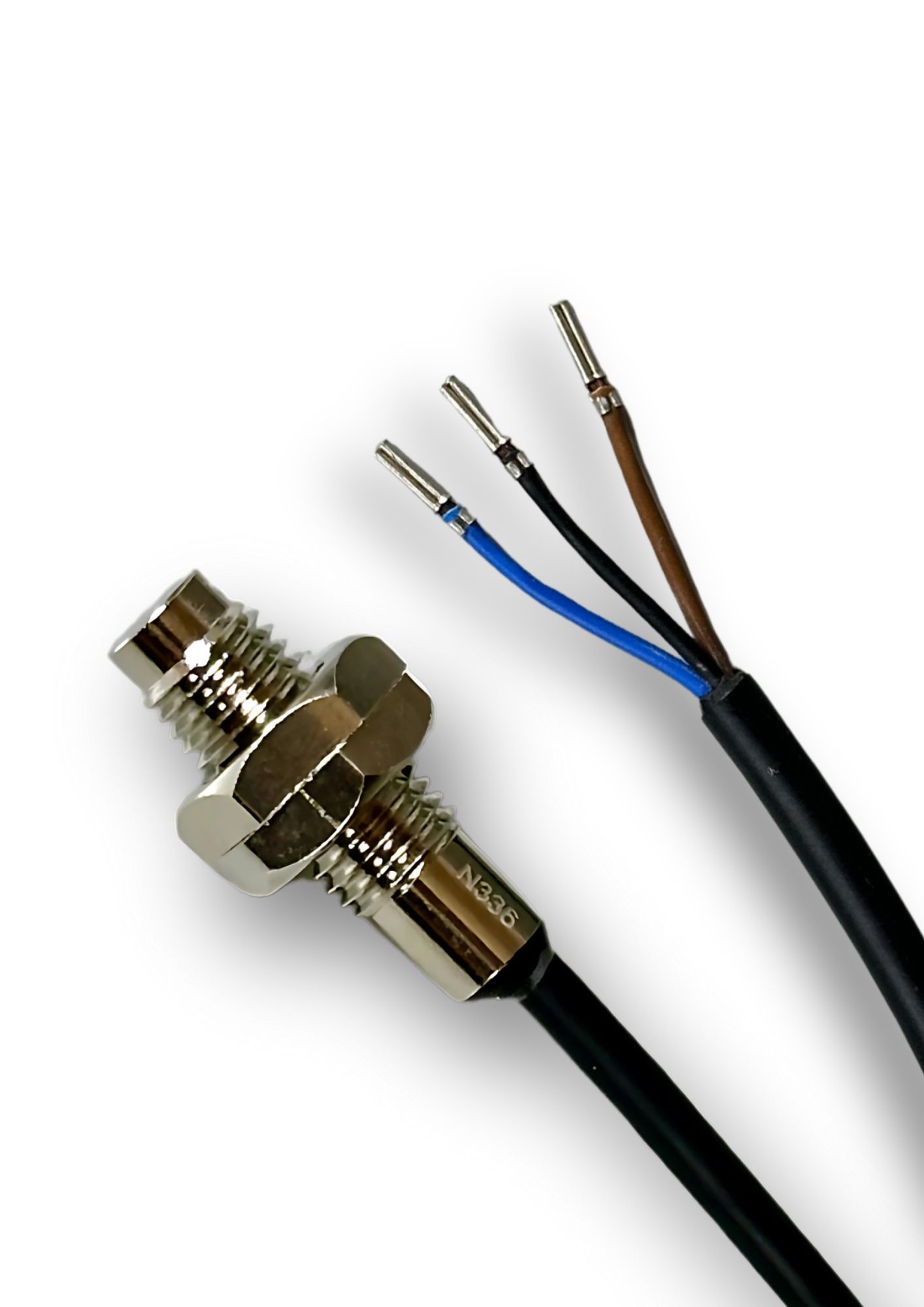

KT-28P-2M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders
KT-28P-2M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders KT-28P-2M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders KT-28P-2M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders

KT-28P-2M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders

In stock
SKU
KT-28P-2M
Special Price ₹1,163.50 Regular Price ₹1,790.00
(18% GST Extra)
Add to Wish List
  • 12mm sensing range
  • 3 Wire
  • PNP Current Sourcing
  • Solid State Output, Normally Open
  • IP 67
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Wiring Method: 3-Wire Type
  • Switching Logic: Solid State Output, Normally Open
  • Sensor Type: PNP Current Sourcing
  • Operating Voltage: 5~30 VDC
  • Switching Current: 100 mA. max.
  • Contact Rating: 6 W max.
  • Current Consumption: 18 mA @24V DC max.
  • Voltage Drop: 0.6V @25mA max.
  • Leakage Current: 0.01 mA max.
  • Indicator: Green LED
  • Cable: ø3.3, 2C, PVC
  • Operating Frequency:1000K Hz
  • Sensing Distance: 12 mm max.
  • Temperature Range: -10 ~ 70 ˚C
  • Shock: 50 G
  • VIbration: 9 G
  • Enclosure Classification: IEC 529 IP 67
  • Protection Circuit: 3, 4
