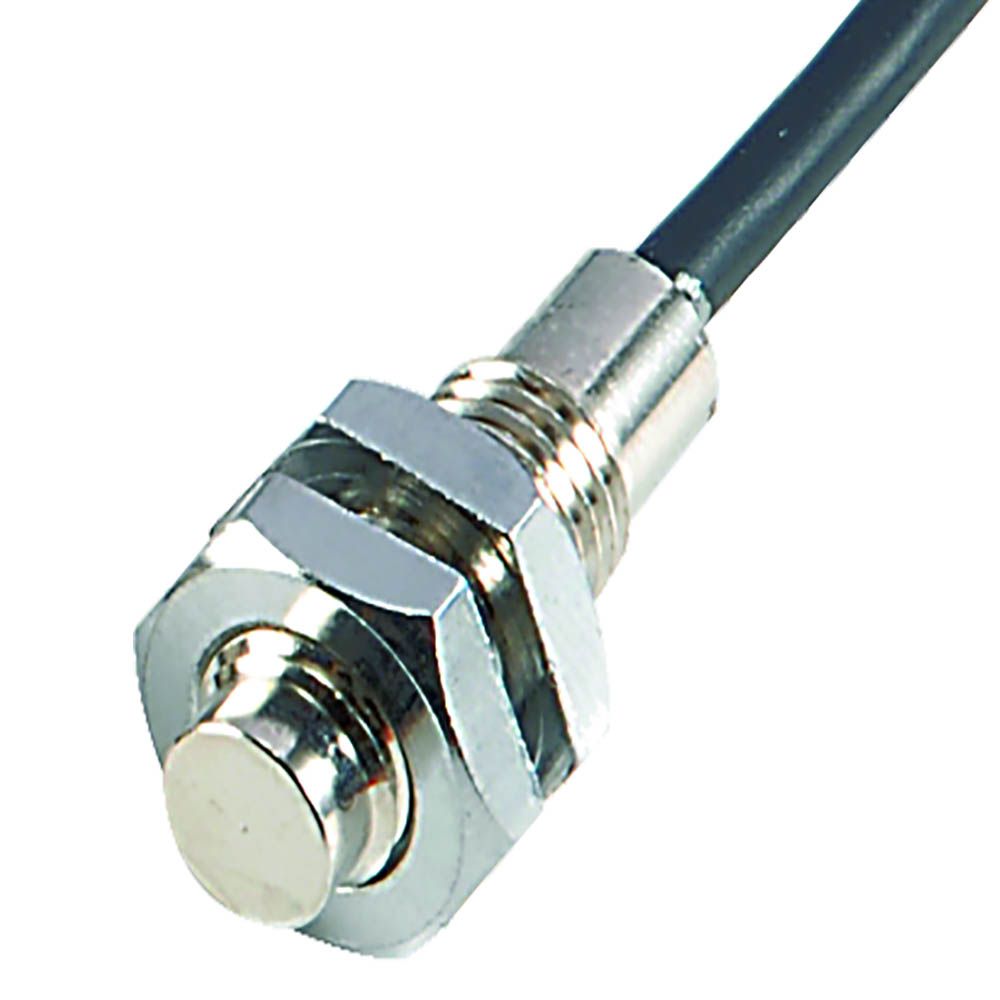

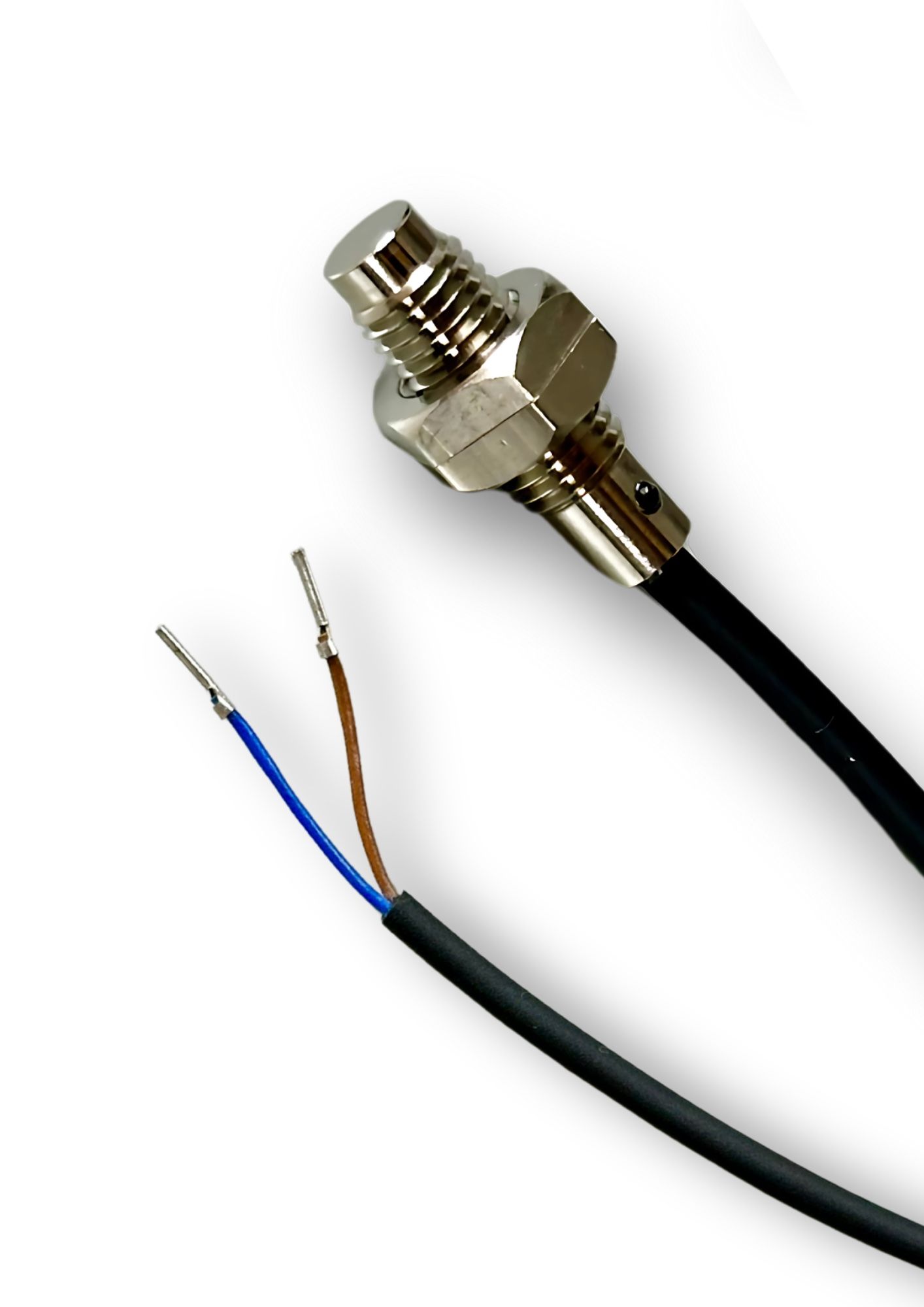

KT-28R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders
In stock
SKU
KT-28R-2M
Special Price
₹754.00
Regular Price
₹1,160.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Wiring Method: 2-Wire Type
- Switching Logic: SPST, Normally Open
- Sensor Type: Reed Switch
- Operating Voltage: 5~120V DC/AC
- Switching Current: 40 mA max.
- Contact Rating: 5 W max.
- Current Consumption: --
- Voltage Drop: 2.5 V max.
- Leakage Current: --
- Indicator: Red LED
- Cable: ø3.3, 2C, PVC
- Operating Frequency: 200 Hz
- Sensing Distance: 9 mm max.
- Temperature Range: -10 ~ 70 ˚C
- Shock: 30 G
- VIbration: 9 G
- Enclosure Classification: IEC 529 IP 67
- Protection Circuit: 1
No specifications available for this product.
