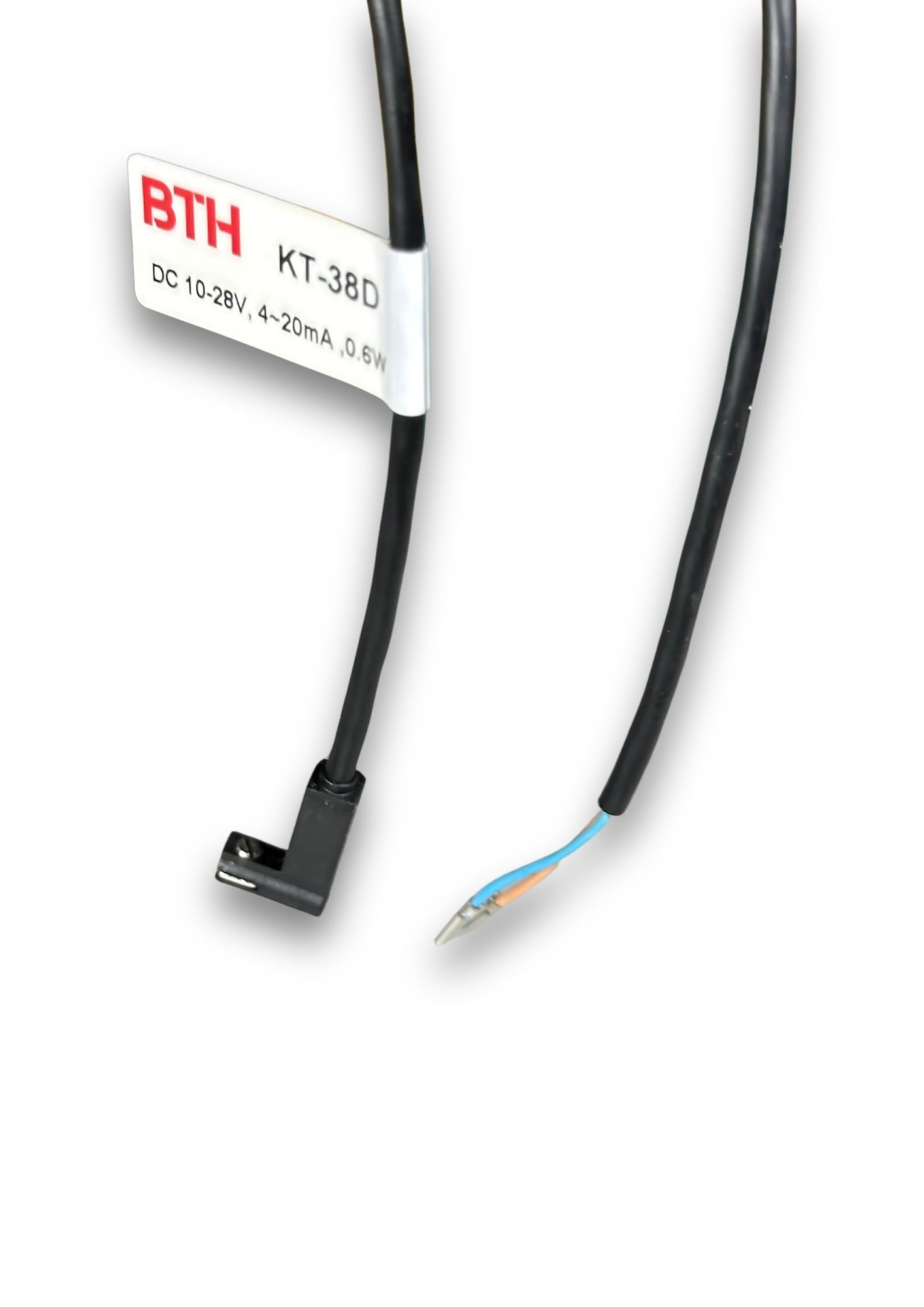

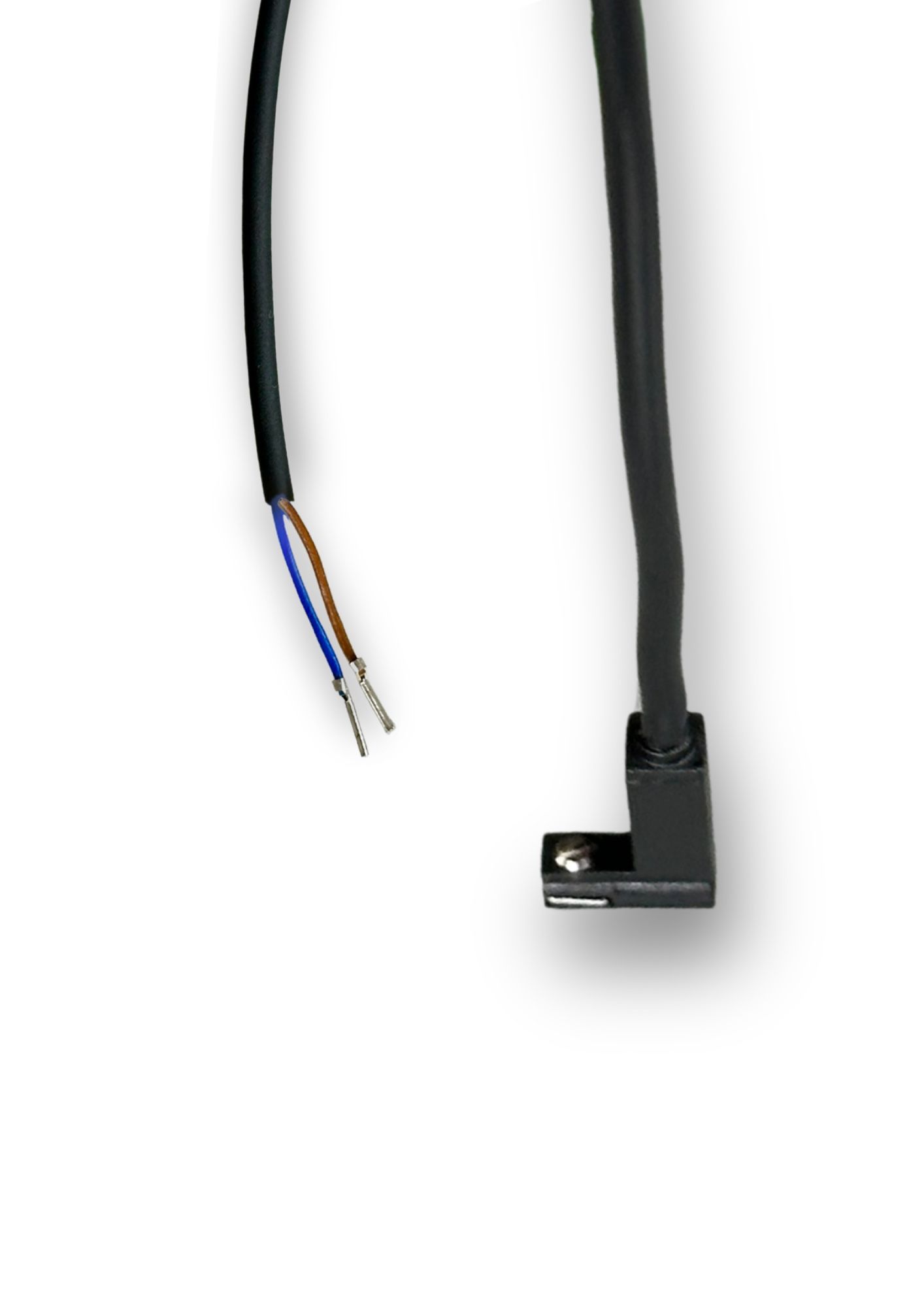

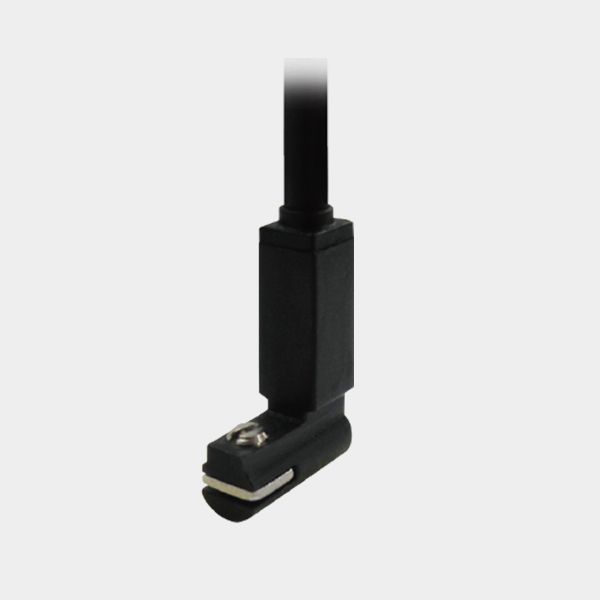

KT-38D-1M||2 Wire, Solid State Output, Normally Open Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~28V DC
In stock
SKU
KT-38D-1M
Special Price
₹1,599.00
Regular Price
₹2,460.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Wiring Method: 2 Wire
- Switching Logic: Solid State Output, Normally Open
- Operating Voltage: 10 ~ 28 V DC
- Switching Current: 4 ~ 20 mA max.
- Contact Rating: 0.6 W max.
- Voltage Drop: 3.5 V max.
- Leakage Current: 0.8 mA max.
- Indicator: Red LED
- Cable: ø2.6, 2C, PVC
- Operating Frequency: 1000 Hz
- Magnet Requirement: 40 Gauss
- Temperature Range: -10 ~ 70 ˚C
- Shock: 50 G
- Vibration: 9 G
- Enclosure Classification: IEC 60529 IP67
- Protection Circuit: 4
No specifications available for this product.
