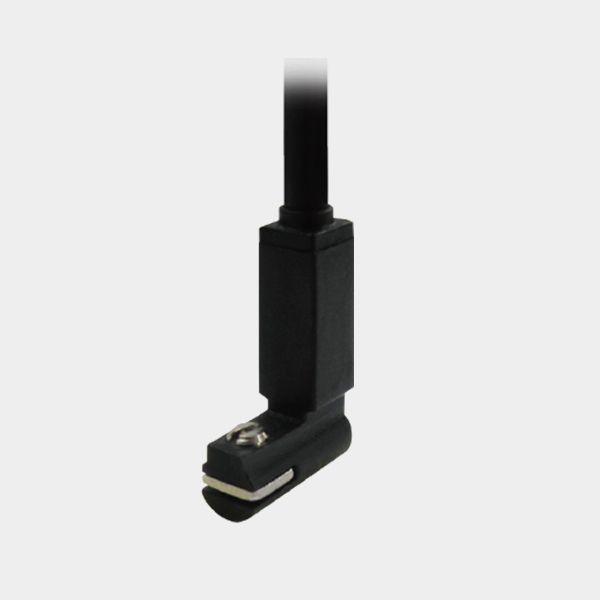

KT-38P-1M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~28V DC
KT-38P-1M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~28V DC

KT-38P-1M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~28V DC

In stock
SKU
KT-38P-1M
Special Price ₹1,599.00 Regular Price ₹2,460.00
(18% GST Extra)
Add to Wish List
  • 3 Wire
  • PNP Current Sourcing
  • Solid State Output, Normally Open
  • 5~28V DC Operating Voltage
  • IP 67
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Wiring Method: 3 Wire Type
  • Switching Logic: Solid State Output, Normally Open
  • Sensor Type: PNP Current Sourcing
  • Operating Voltage: 5 ~ 28 V DC
  • Switching Current: 50 mA max.
  • Contact Rating:1.5 W max..
  • Current Consumption: 10 mA @ 24 V DC max.
  • Voltage Drop: 0.5 V @ 50 mA max.
  • Leakage Current: 0.01 mA max.
  • Indicator: Red LED
  • Cable: ø2.6, 3C, PVC
  • Operating Frequency: 1000 Hz
  • Magnet Requirement: 40 Gauss
  • Temperature Range: -10 ~ 70 ˚C
  • Shock: 50 G
  • Vibration: 9 G
  • Enclosure Classification: IEC 60529 IP67
  • Protection Circuit: 3, 4
