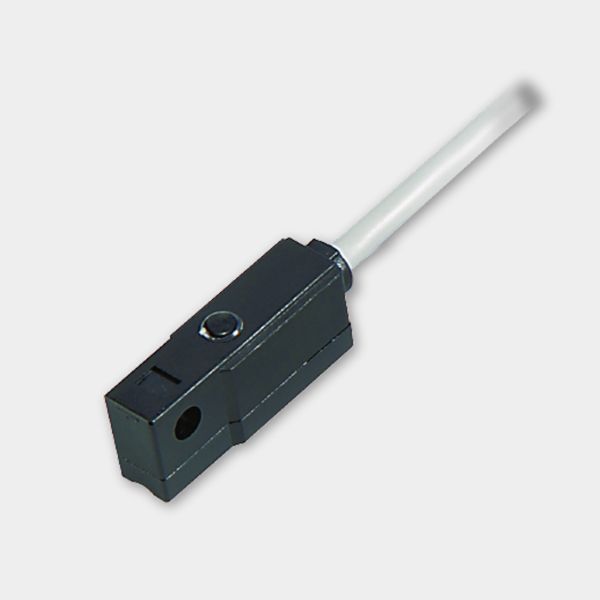

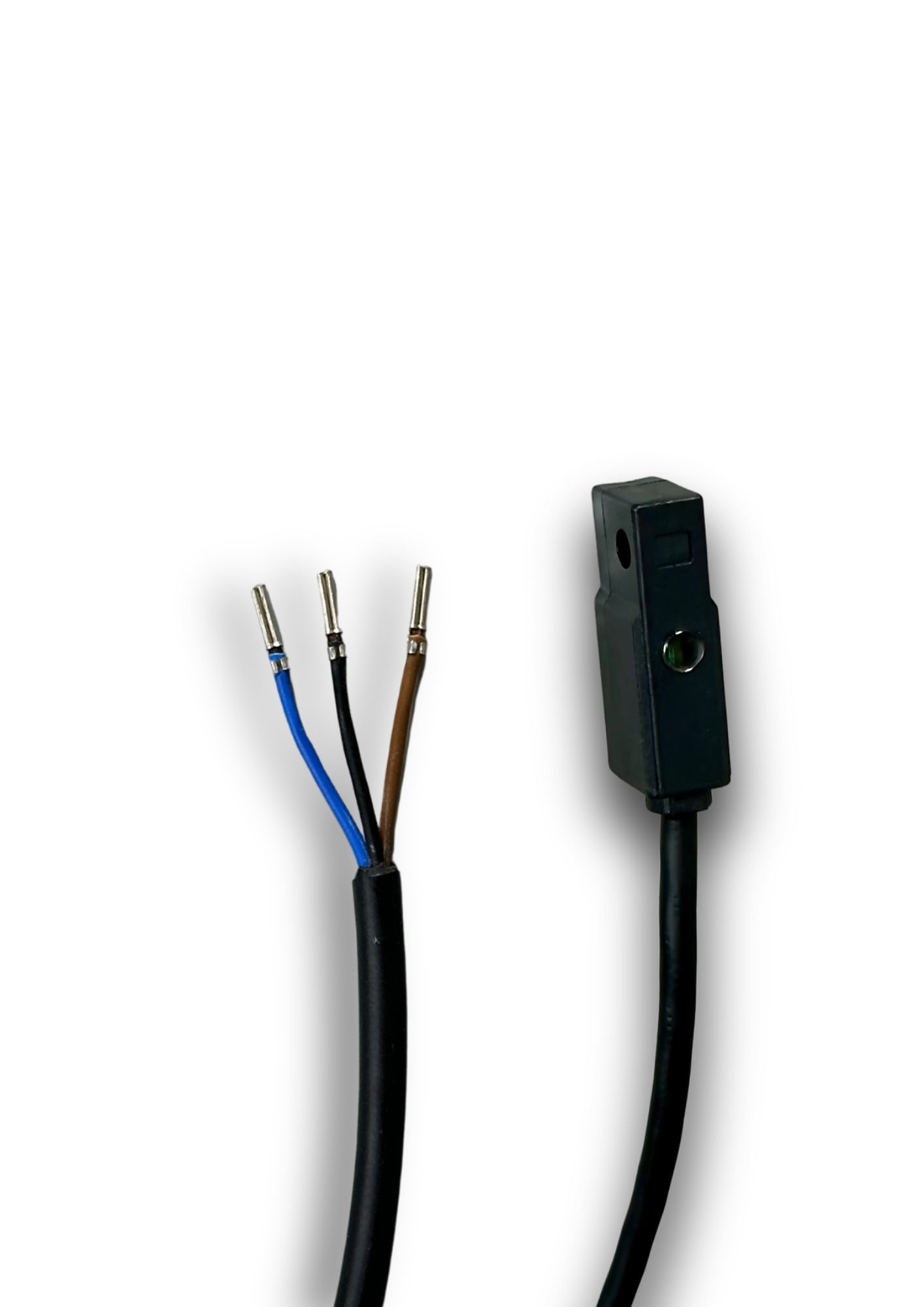

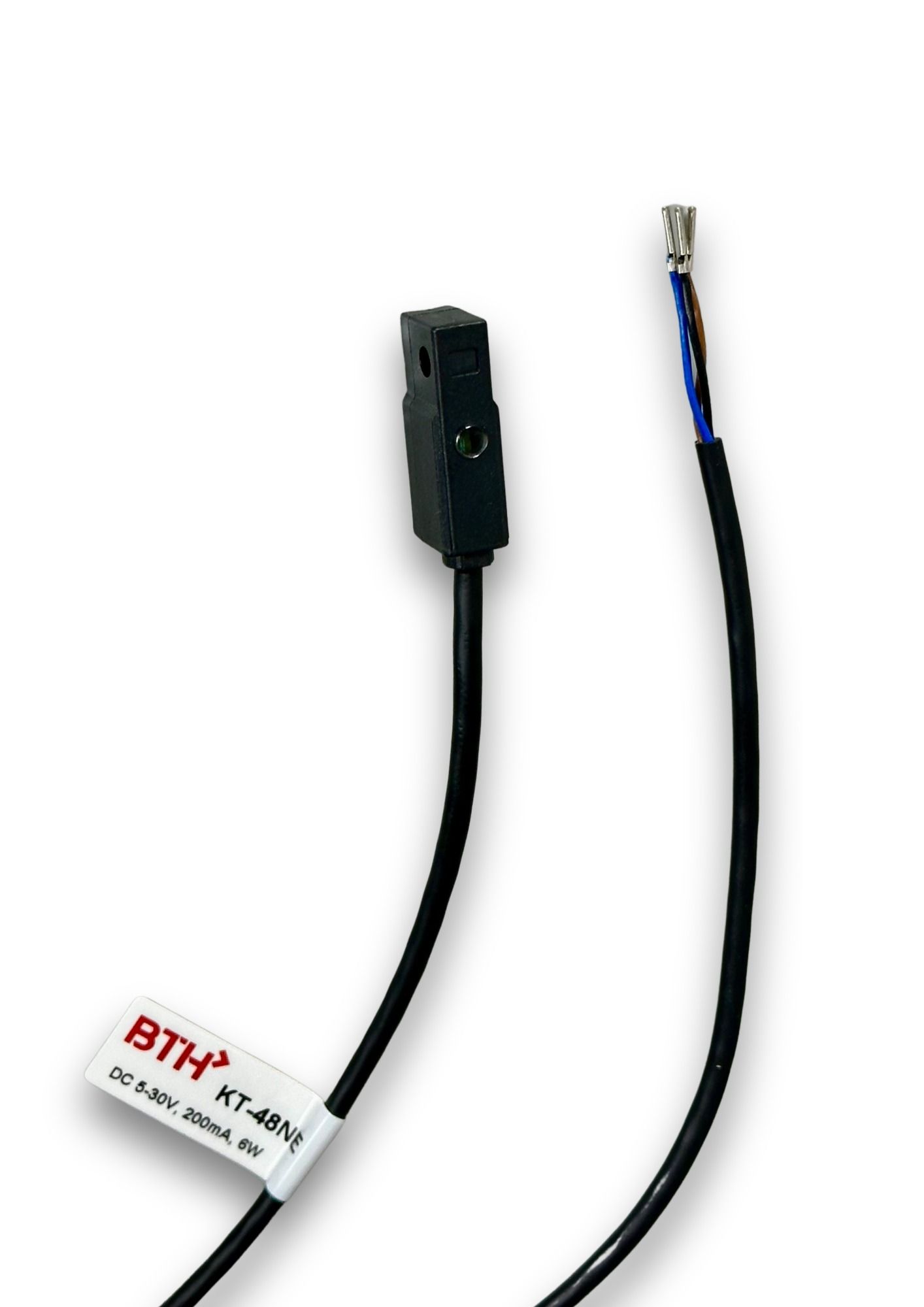

KT-48NE-2M||3 Wire, NPN Current Sinking Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~28V DC
In stock
SKU
KT-48NE-2M
Special Price
₹897.00
Regular Price
₹1,380.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Wiring method: 3-Wire type
- Switching Logic: Solid State Output, Normally Open
- Sensor type: NPN Current Sinking
- Operating Voltage: 5 ~ 28V DC
- Switching Current: 50mA max.
- Contact Rating *1: 1.5W max.
- Current Consumption: 10mA @24V DC max.
- Voltage Drop: 1.5V @50mA max.
- Indicator: Red LED
- Cable: Ø3.3, 3C, PVC
- Operating Frequency: 1000 Hz max.
- Magnet Requirement *2: 75 Gauss
- Temperature range: -10~70˚C
- Shock *3: 50 G
- Vibration *4: 9 G
- Enclosure classification: IEC 60529 IP67
- Protection circuit *5: 3, 4
