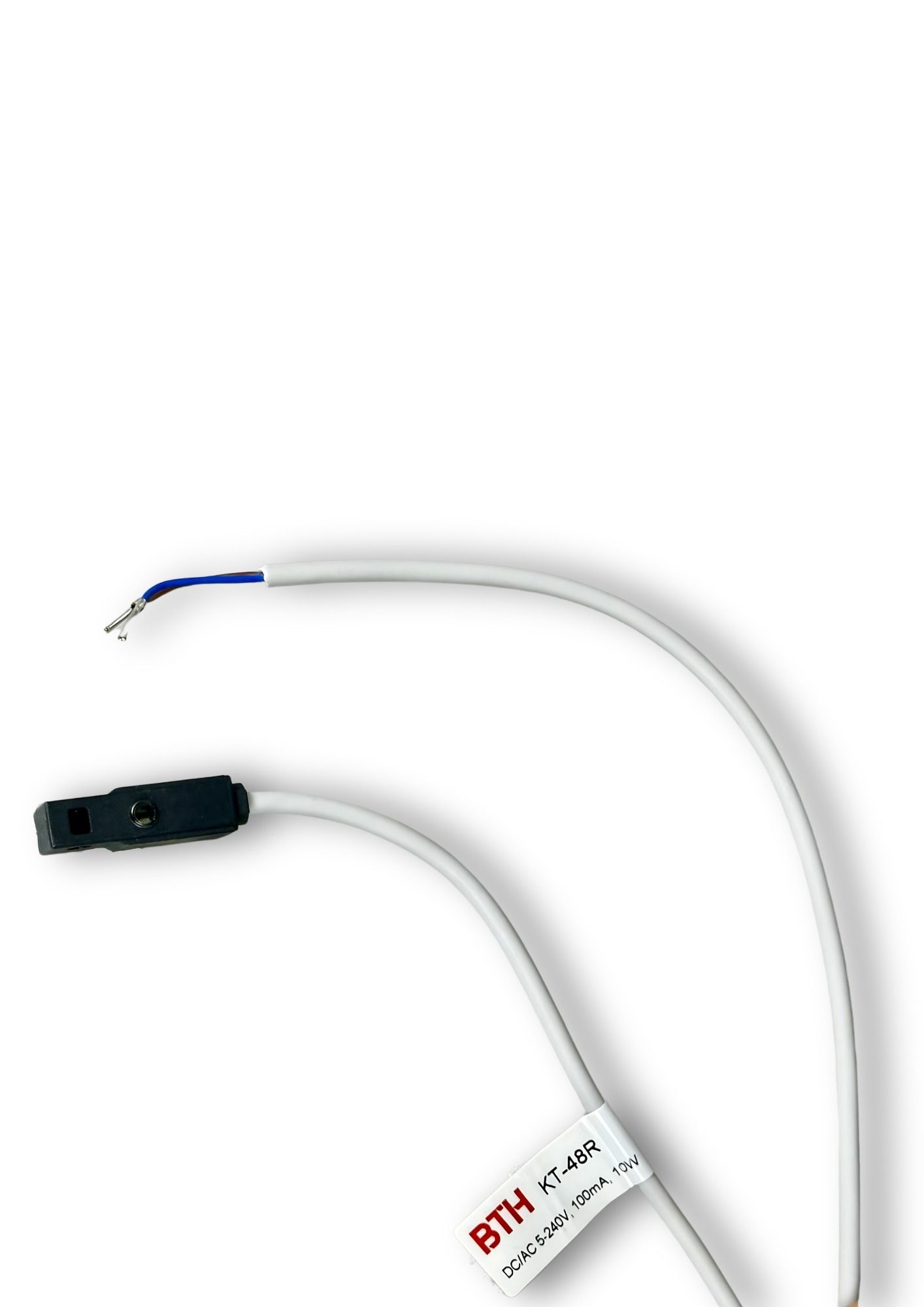

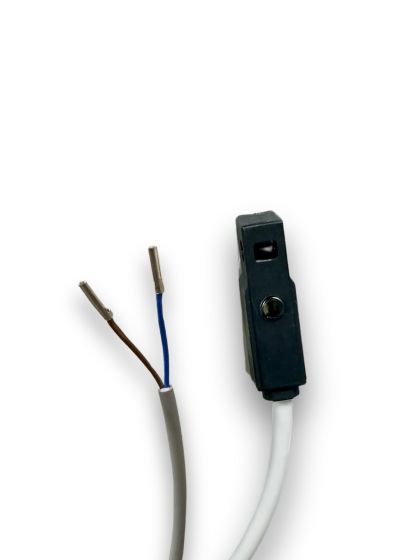

KT-48R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC
KT-48R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC KT-48R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC KT-48R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

KT-48R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

In stock
SKU
KT-48R-2M
Special Price ₹669.50 Regular Price ₹1,030.00
(18% GST Extra)
Add to Wish List
  • 2-Wire type
  • Reed switch
  • SPST, Normally Open
  • 5~240V AC/DC Operating Voltage
  • IP 67
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Wiring method: 2-Wire type
  • Switching Logic: SPST, Normally Open
  • Sensor type: Reed Switch
  • Operating Voltage: 5~240V DC/AC
  • Switching Current: 10mA max.
  • Contact Rating *1: 10W max.
  • Voltage Drop: 13.5V max.
  • Indicator: Red LED
  • Cable: Ø3.3, 2C, PVC
  • Operating Frequency: 200 Hz
  • Magnet Requirement *2: 110 Gauss
  • Temperature range: -10~70˚C
  • Shock *3: 30 G
  • Vibration *4: 9 G
  • Enclosure classification: IEC 60529 IP67
  • Protection circuit *5: 1
