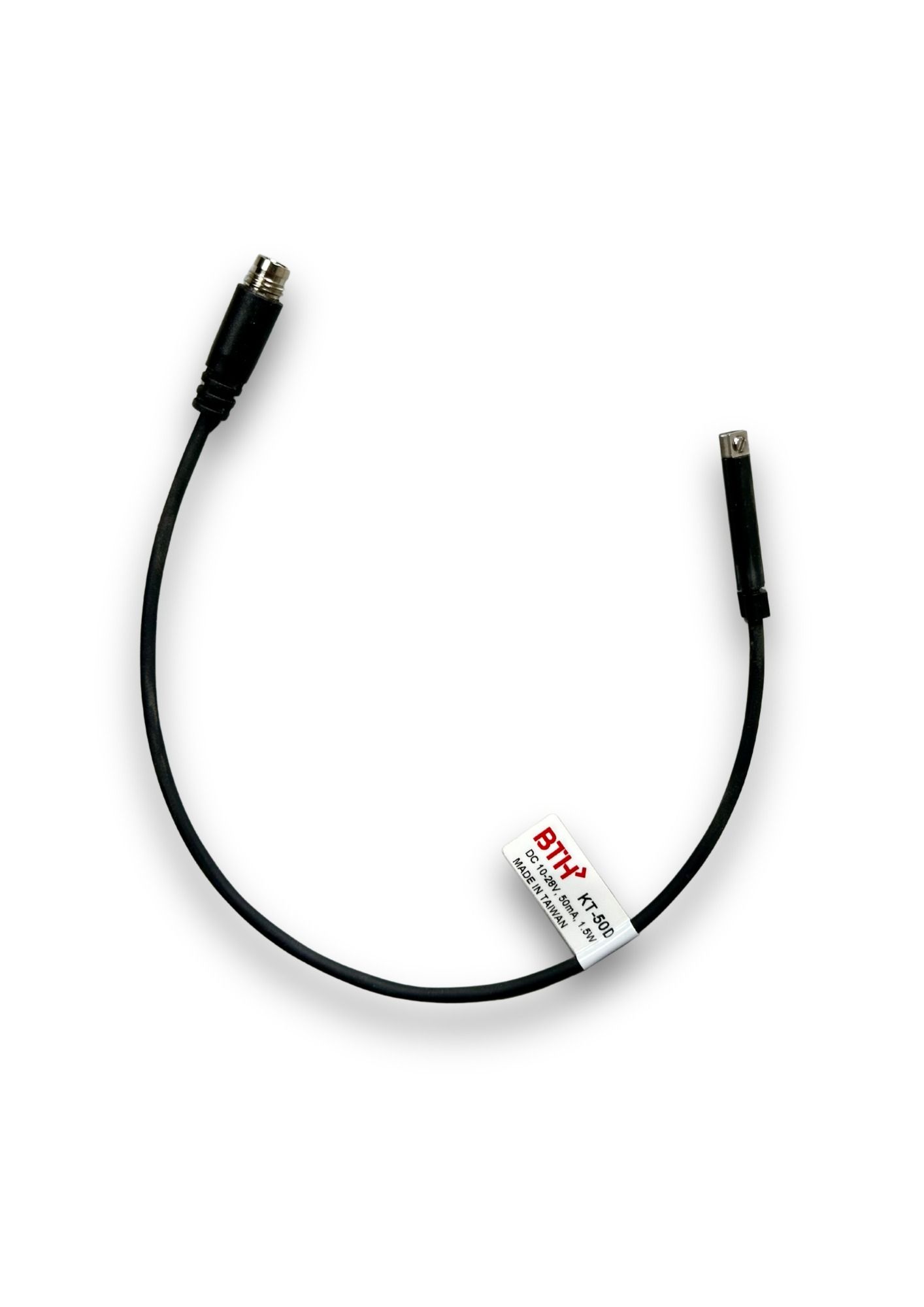

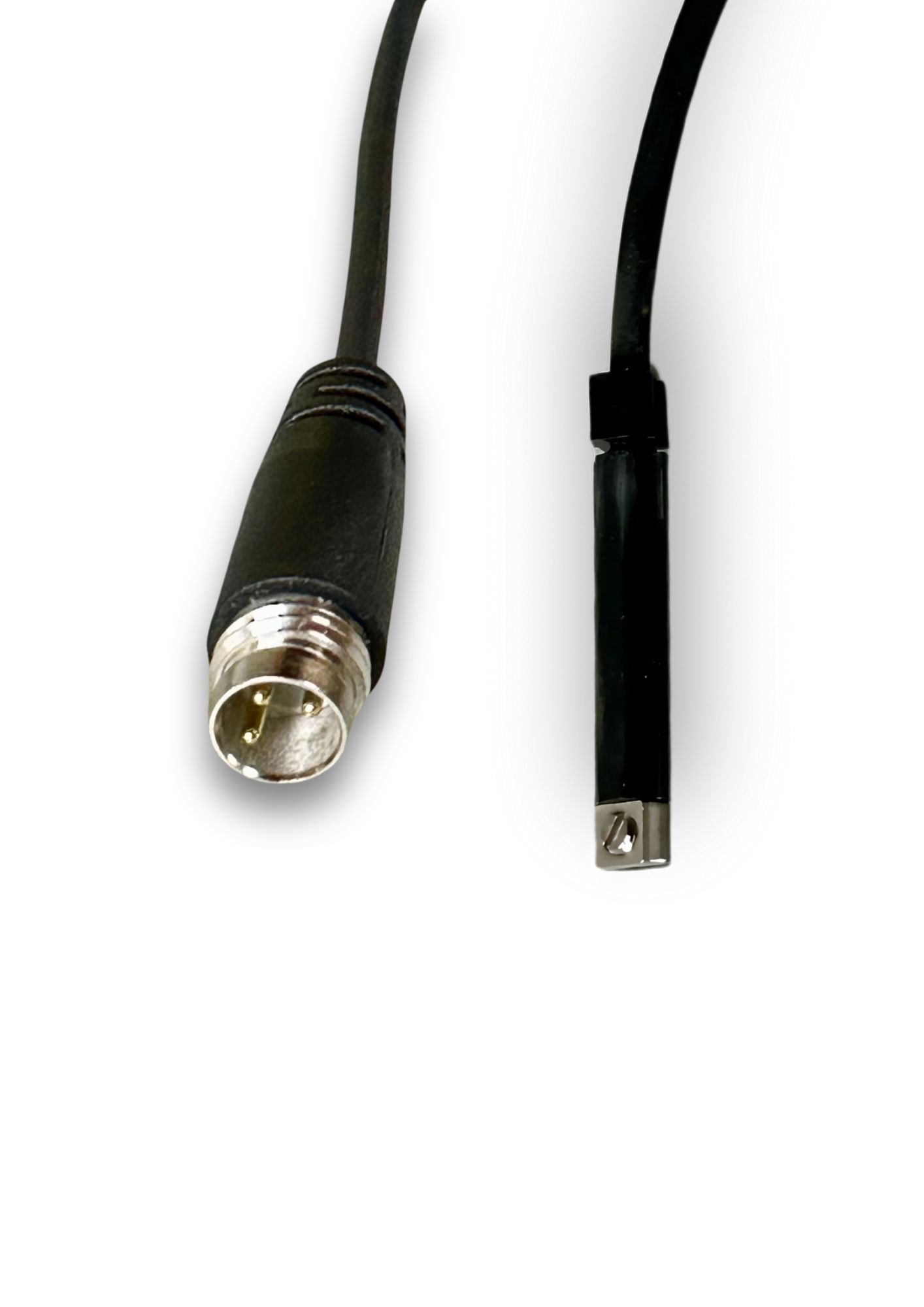

KT-50D-QD||2 Wire, Solid State Output, Normally Open Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~28V DC

KT-50D-QD||2 Wire, Solid State Output, Normally Open Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~28V DC

KT-50D-QD||2 Wire, Solid State Output, Normally Open Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~28V DC

KT-50D-QD||2 Wire, Solid State Output, Normally Open Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~28V DC

Be the first to review this product

In stock

SKU

KT-50D-QD

Special Price ₹1,267.50 Regular Price ₹1,950.00

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Wiring Method: 2 Wire
Switching Logic: Solid State Output, Normally Open
Operating Voltage: 10 ~ 28 V DC
Switching Current: 50 mA max.
Contact Rating: 1.5W max.
Voltage Drop: 3.5 V max.
Leakage Current: 0.8 mA max.
Indicator: Red LED
Cable: ø3, 2C, PUR
Operating Frequency: 1000 Hz
Magnet Requirement: 70 Gauss
Temperature Range: -10 ~ 70 ˚C
Shock: 50 G
VIbration: 9 G
Enclosure Classification: IEC 60529 IP67
Protection Circuit: 2,4
