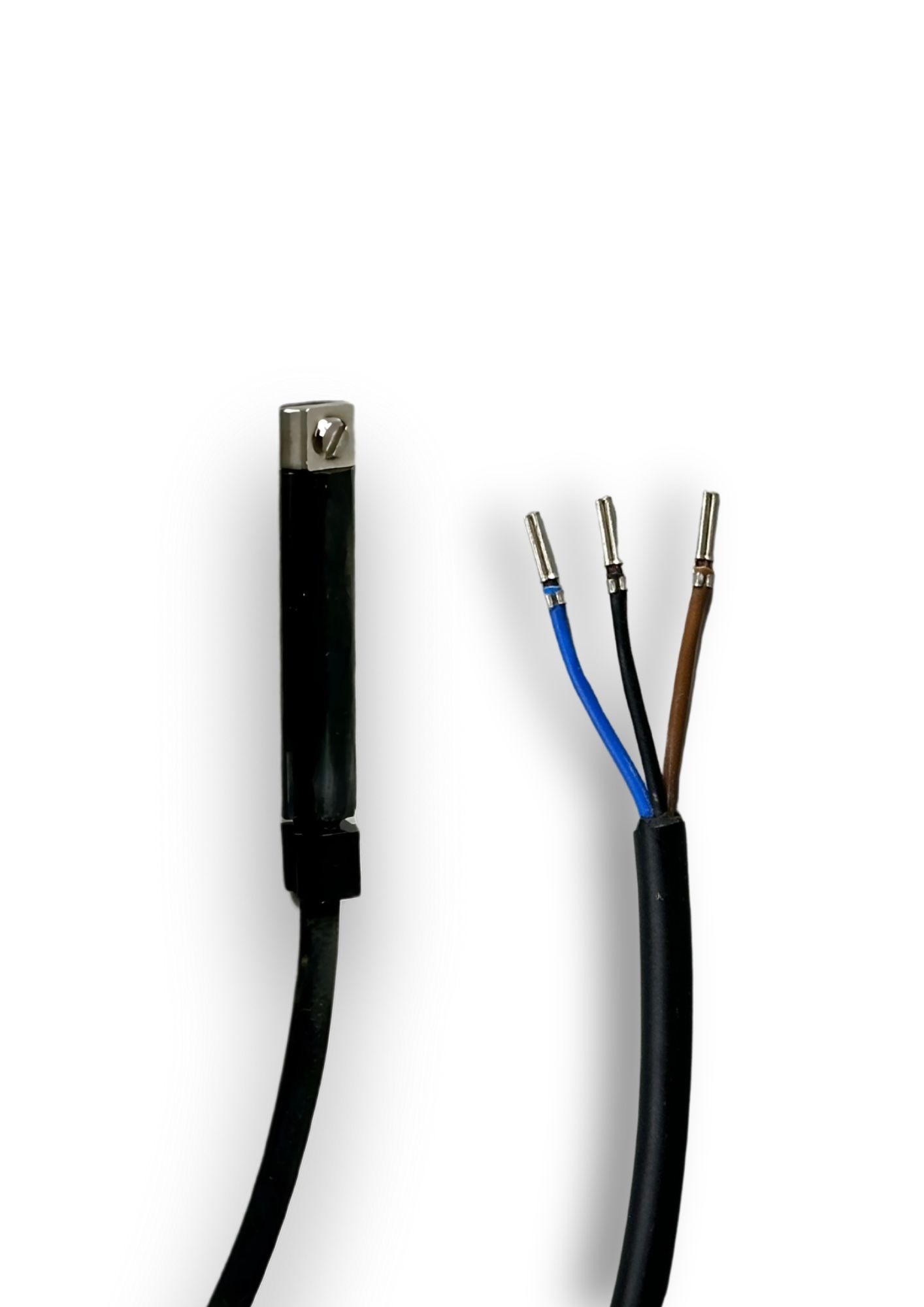

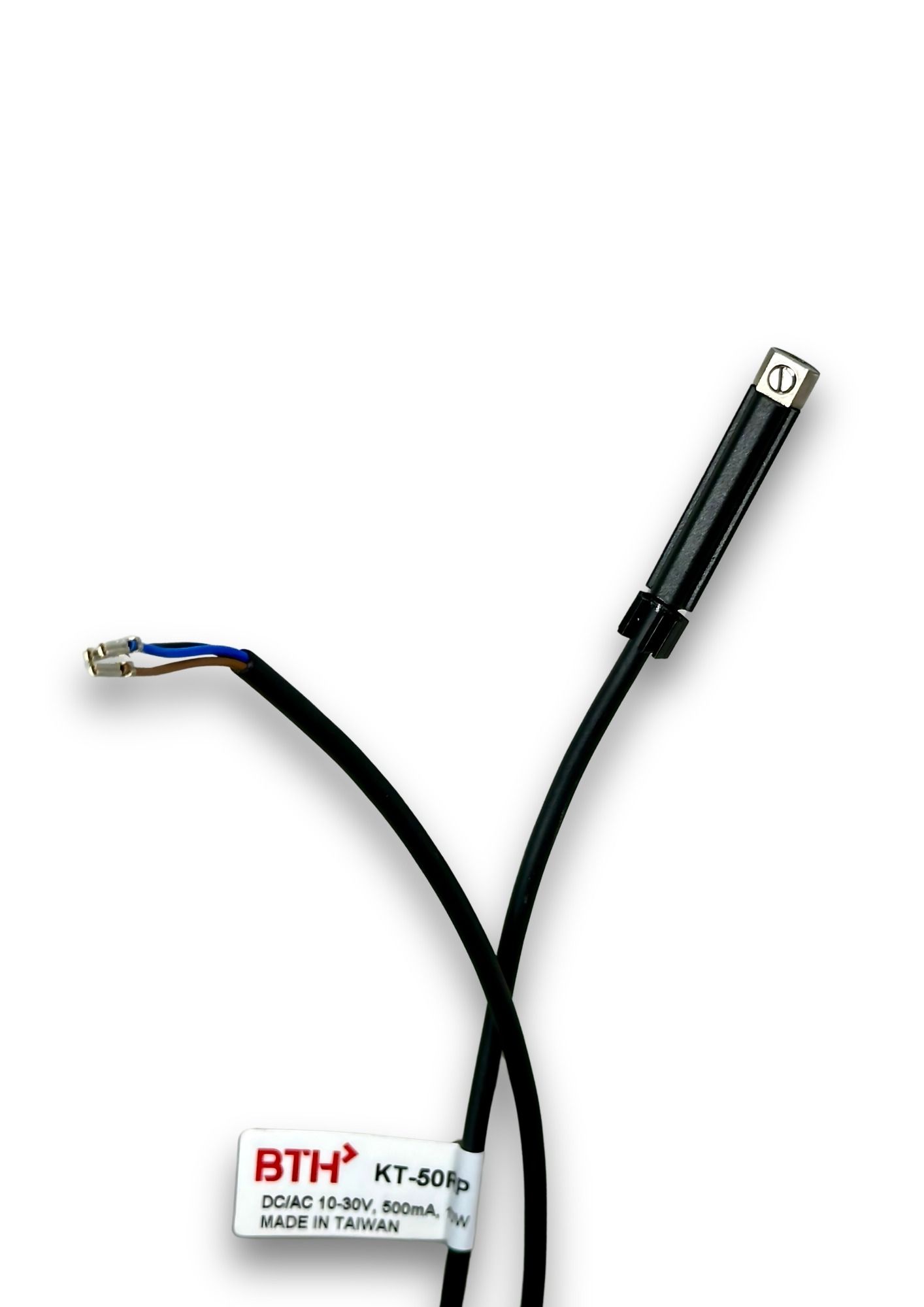

KT-50RP-1M||3 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~30V DC/AC
In stock
SKU
KT-50RP-1M
Special Price
₹656.50
Regular Price
₹1,010.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Wiring Method: 3 Wire Type
- Switching Logic: SPST, Normally Open
- Sensor Type: Reed Switch
- Operating Voltage: 10~30V DC / AC
- Switching Current: 500mA max.
- Contact Rating *1: 10W max.
- Current Consumption: 5mA @ 24V DC max.
- Voltage Drop: 0.1V @ 100mA max.
- Indicator: Yellow LED
- Cable: ø3, 3C, PUR
- Operating Frequency: 200Hz
- Magnet Requirement *2: 70 Gauss
- Temperature Range: -10 ~ 70 ˚C
- Shock *3: 30 G
- Vibration *4: 9 G
- Enclosure Classification: IEC 60529 IP67
- Protection Circuit *5: 1
No specifications available for this product.
Write Your Own Review
Downloads
Related Products
Check items to add to the cart or
-
KT-50R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/ACSpecial Price ₹669.50 Regular Price ₹1,030.00
-
KT-50P-1M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~30V DCSpecial Price ₹1,079.00 Regular Price ₹1,660.00
-
KT-50N-1M||3 Wire, NPN Current Sinking Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~30V DCSpecial Price ₹1,079.00 Regular Price ₹1,660.00
-
KT-50P-QD||3 Wire, PNP Current Sourcing with male straight cable, Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~30V DCSpecial Price ₹1,267.50 Regular Price ₹1,950.00
-
KT-50N-QD||3 Wire, NPN Current Sinking with male straight cable plug Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~30V DCSpecial Price ₹1,267.50 Regular Price ₹1,950.00
-
KT-50D-QD||2 Wire, Solid State Output, Normally Open Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~28V DCSpecial Price ₹1,267.50 Regular Price ₹1,950.00
-

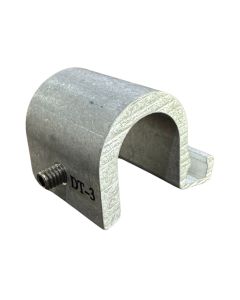

DT-3, Mounting Bracket for ⌀ 12~ ⌀ 14mmSpecial Price ₹234.00 Regular Price ₹360.00
