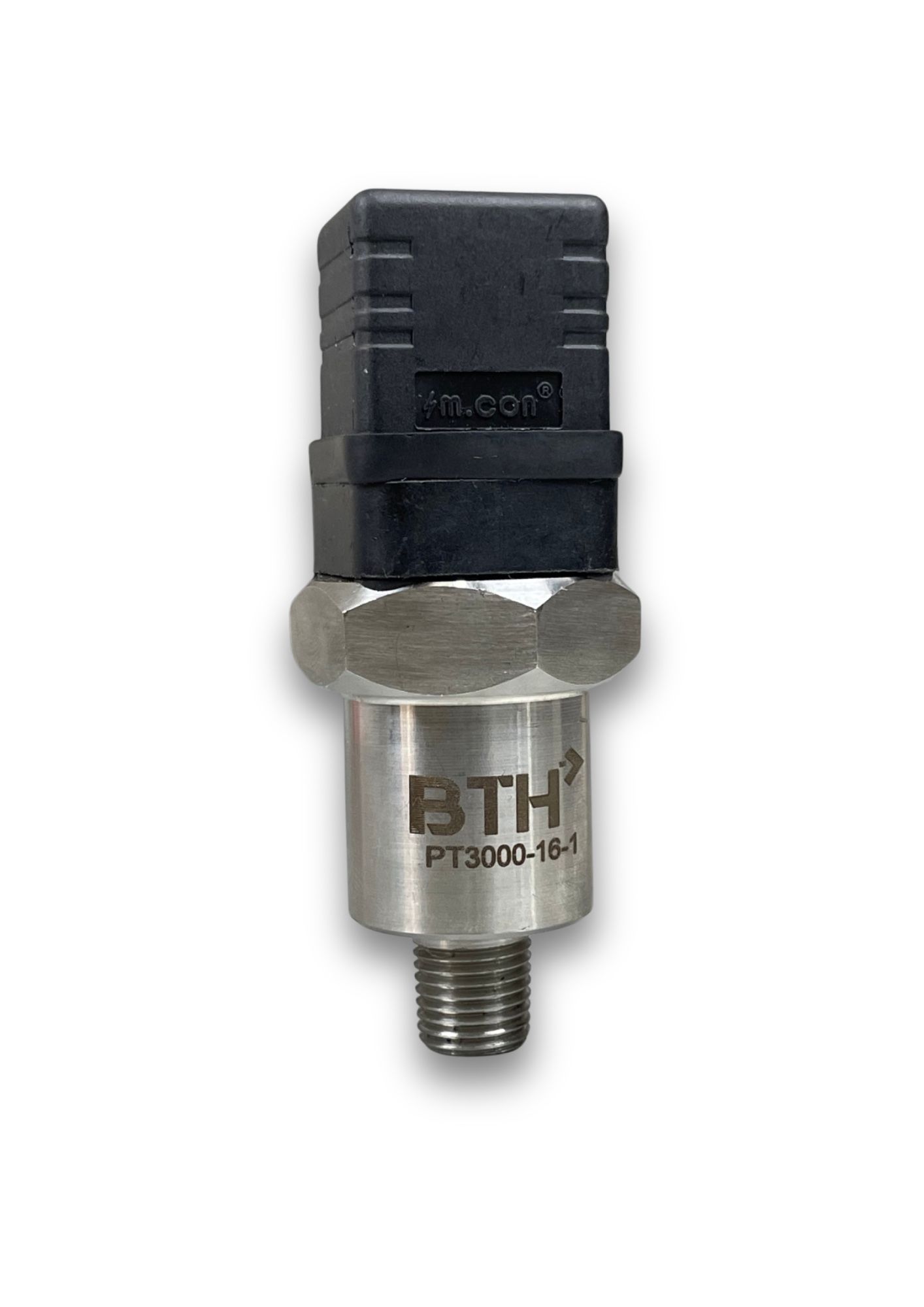

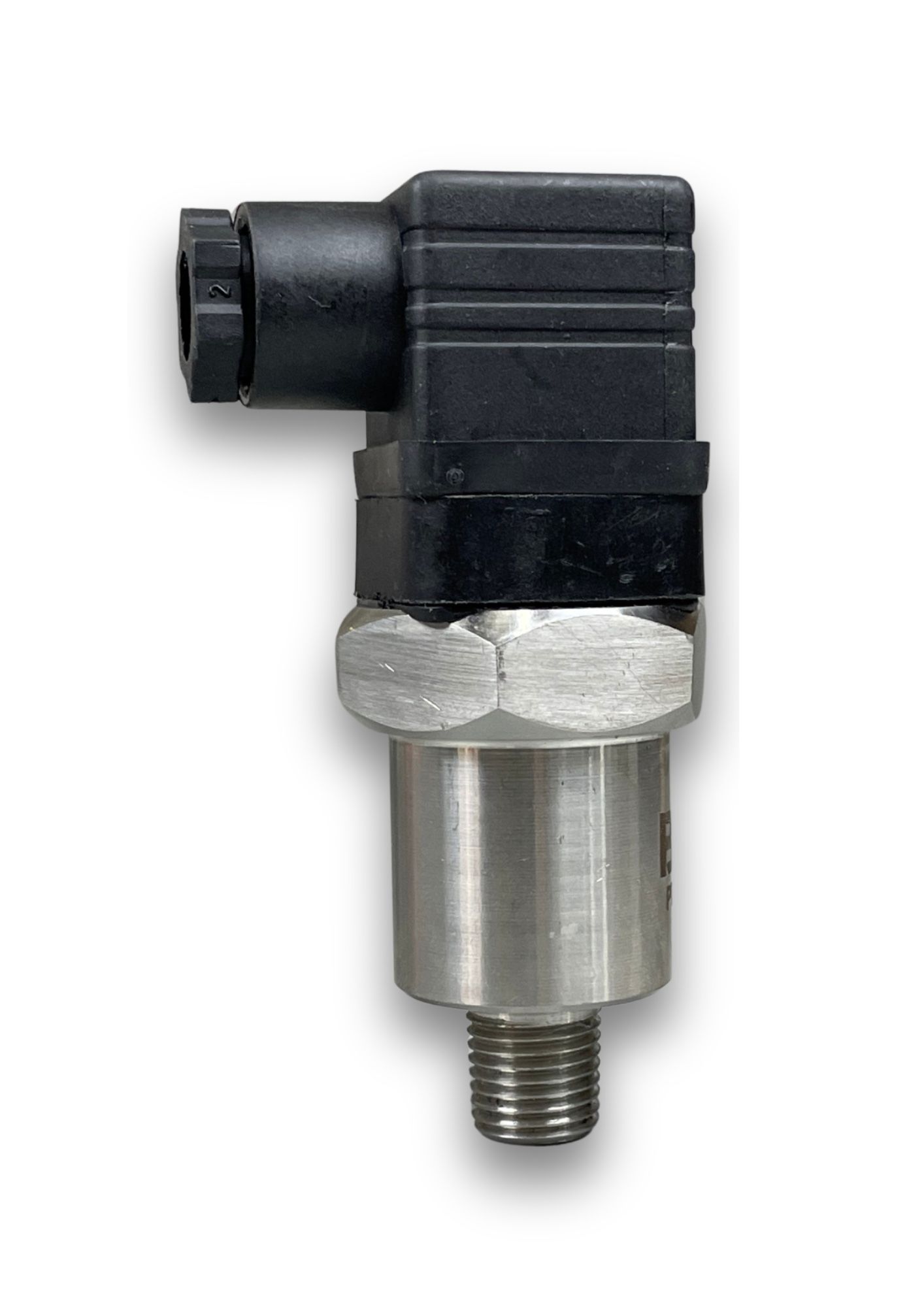

PT 3000-16-1|| Pressure Range 0~16 bar, 4~20mA Output, Hermetically Sealed Modular Pressure Sensor

In stock

SKU

PT 3000-16-1

Special Price ₹3,575.00 Regular Price ₹5,500.00

(18% GST Extra)

Qty

Add to Wish List

Water, hydraulic fluids
Compressed air
Food, beverage, oil, steam
Refrigerants (butane, propane, ammonia, R134A, R407C, R410A,R448A/Solstice® N40, R32 and R1234ze, R1234yf, glycol + water)
O2, N2, CO2, N2O, air

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Pressure Range: 0 to 16
Proof Pressure: 32
Burst Pressure: 48
Output Signal: 4~20mA
Operating Supply Voltage: 12~30VDC
Power Consumption: ≤600mW
Load: >4.7kΩ
Overvoltage Protection: Max 33V
PIN Assignment: Current Output
Response Time: ≤ 2 ms max. to 63% of full scale pressure with step change on input
Accuracy: ≤ 0.5% of span 0.1% of span
Non-linearity *: 0.1% of span
Non-repeatability: 0.1% of span
1-year Stability: 0.2% of span
Medium Temperature: -30°C to +80°C
Environmental Temperature: -30°C to +100°C (depending on electrical connector and external seal ring)
Weight: 260g
Media: All class II fluids and gases compatible with stainless stell 304 (1.4301)
Electrical Connector: 18mm Compatiable With DIN 175301-803A
