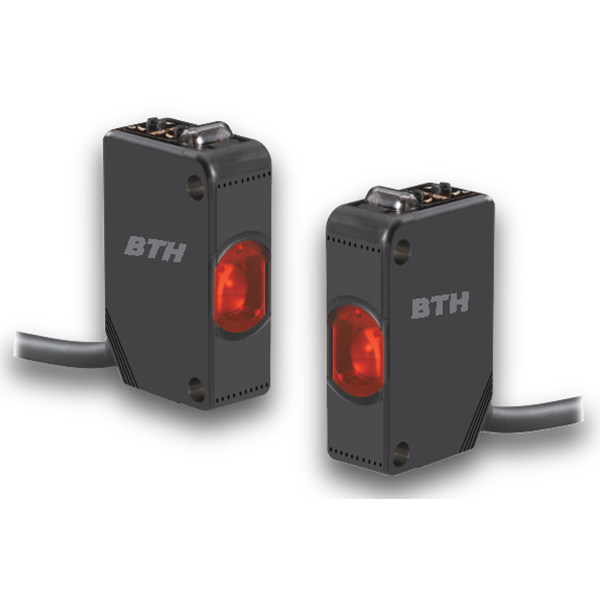

BD-NN5MH||Small size Through beam photo sensor, Sensing Range 5 Meter, NPN
BD-NN5MH||Small size Through beam photo sensor, Sensing Range 5 Meter, NPN

BD-NN5MH||Small size Through beam photo sensor, Sensing Range 5 Meter, NPN

Out of stock
SKU
BD-NN5MH
Special Price ₹2,690.05 Regular Price ₹4,483.41
(18% GST Extra)
  • General Photoelectric sensor with built in Amplifer
  • Visible dual LED makes easy to know the current operation situation
  • Sensitivity adjuster

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Mode: NPN
  • Sensing Distance: 5 Mtr.
  • Emitting Light: Infrared LED 850 nm
  • Operating Voltage: 12~24VDC ±10%
  • Current Consumption: <30 mA Max.
  • Load Current: 100ma Max. at 24VDC
  • Operation mode: Dark on (NO)
  • Response Time: 1 ms Max.
  • Insulation resistance: 20MΩ min. (DC500V)
  • Protection degree: IP55
  • Voltage With Standability: AC1000V 60Hz for 60 Sec.
  • Operating Temperature: -20°C ~ + 70°C
  • Ambient Humidity: 35% ~ 85% RH
  • Material: ABS
  • Wiring Method: 2M/3-wires (rec.), 2M/2-wires (emitter)
  • Weight: Approx. 80g
