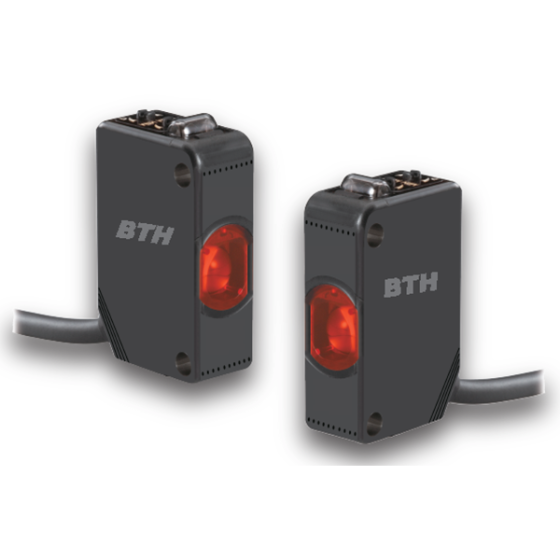

BD-PN5MH||Small size Through beam photo sensor, Sensing Range 5 Meter, PNP
BD-PN5MH||Small size Through beam photo sensor, Sensing Range 5 Meter, PNP

BD-PN5MH||Small size Through beam photo sensor, Sensing Range 5 Meter, PNP

In stock
SKU
BD-PN5MH
Special Price ₹2,421.25 Regular Price ₹3,725.00
(18% GST Extra)
Add to Wish List
  • General Photoelectric sensor with built in Amplifer
  • Visible dual LED makes easy to know the current operation situation
  • Sensitivity adjuster
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Mode: PNP
  • Sensing Distance: 5 Mtr.
  • Emitting Light: Infrared LED 940 nm
  • Operating Voltage: 12~24VDC ±10%
  • Current Consumption: <30 mA Max.
  • Load Current: 100ma Max. at 24VDC
  • Operation mode: Dark on (NO)
  • Response Time: 1 ms Max.
  • Insulation resistance: 20MΩ min. (DC500V)
  • Protection degree: IP55
  • Voltage With Standability: AC1000V 60Hz for 60 Sec.
  • Operating Temperature: -20°C ~ + 70°C
  • Ambient Humidity: 35% ~ 85% RH
  • Material: ABS
  • Wiring Method: 2M/3-wires (rec.), 2M/2-wires (emitter)
  • Weight: Approx. 80g
