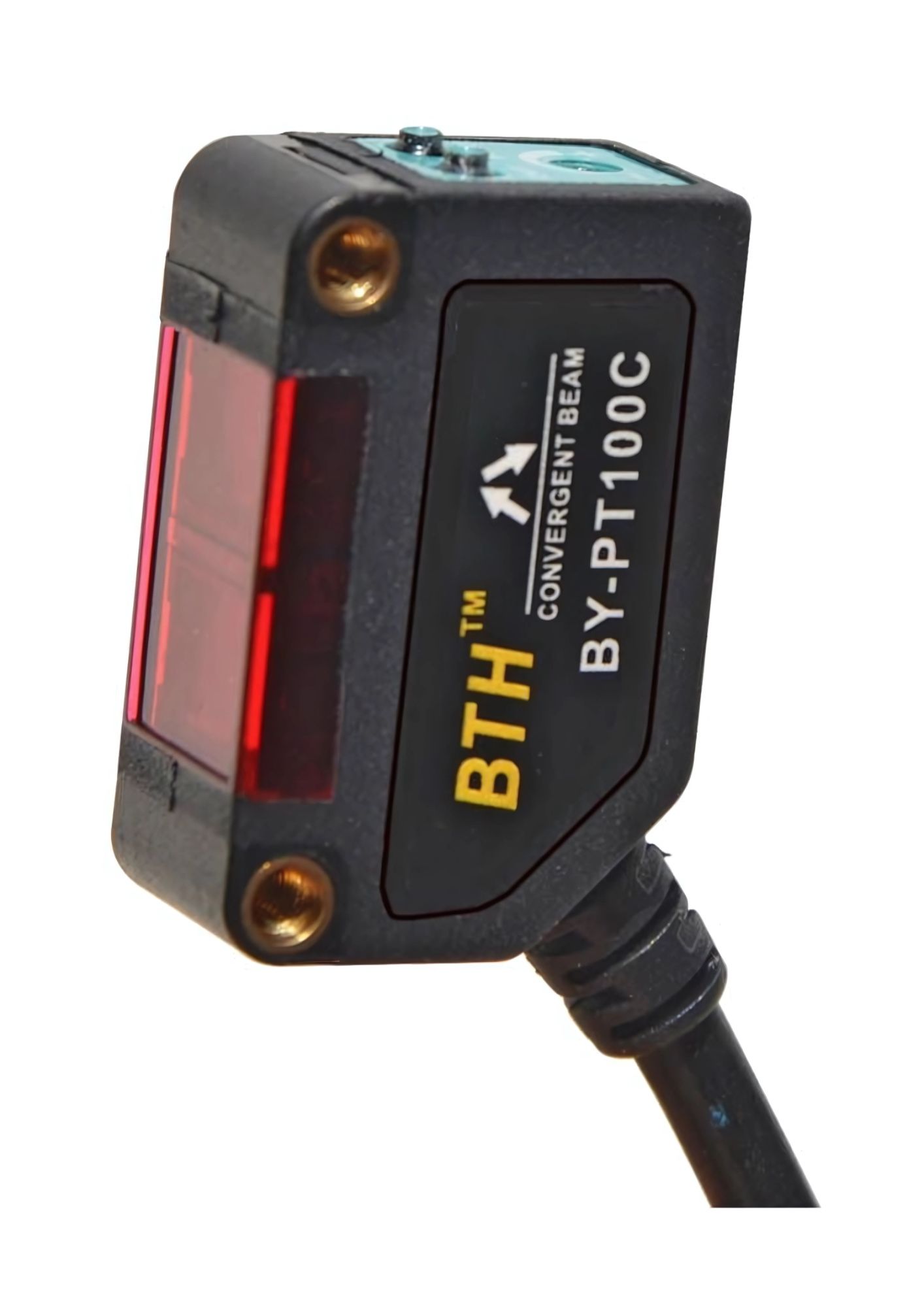

BY-PT100C||Small Convergent Beam photo sensor, Sensing Range 100mm, PNP
Out of stock
SKU
BY-PT100C
Special Price
₹3,510.00
Regular Price
₹5,400.00
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Sensing Type: Convergent Reflection type
- Sensing Distance: 100mm
- Emitting Light: Infrared LED 850nm
- Operating Voltage: 12~ 24VDC
- Current Consumption: 30 mA Max.
- Load Current: 100mA Max. at DC24V
- Output type (selectable): NPN L.on / D.on
- Response Time: 1.5 ms Max.
- Insulation Resistance: 20MΩ min. (DC500V)
- Voltage with standability: AC1000V 60Hz for 60 Sec.
- Operating Temperature: -20°C ~ + 60°C
- Ambient Humidity: 35% ~ 85% RH
- Protection Degree: IP64
- Material: ABS
- Wiring method: Pre-weird Ø4.2 x 2 M / 4-wires
- Weight: Approx. 60g
