Selec VFD-SH-3-100-B-415V, Three Phase Heavy Duty AC Drives, 415VAC INPUT, 3 Phase 415VAC OUTPUT, 10 HP /7.5kW /17Amp Output
Out of stock
SKU
VFD-SH-3-100-B-415V
Special Price
₹19,919.52
Regular Price
₹41,499.00


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- AC Input Voltage Range: Three Phase
- Applicable motor output (kW): 7.5
- Applicable motor output (HP): 10
- Maximum input current: 31A
- Rated output capacity (kVA): 12
- Rated output current: 17A
- Frequency Range: 50/60 Hz
- Control Mode: Space vector PWM (SVPWM)-based scalar control
- Frequency Control Range: 0.1 to 400 Hz
- Acc./Dec. Time: 0.1 to 3600.0 sec., four acceleration and deceleration time settings available
- Overload Capacity: For ND: 120% up to 60 sec, 150% up to 10 sec, 180% up to 1 sec (every 10 min) For HD: 150% up to 60 sec, 180% up to 10 sec, 200% up to 1 sec (every 10 min)
- Protection functions: Over voltage, Under voltage, Over current, Over temperature, Over load, Under current and Output short circuit
- Ingress Protection: IP20
- Working Temperature: -10 to +55 °C
- Ambient humidity: <90%, No condensation
- Installation location: Indoor, <1000m altitude above sea level
Product Code | Description | Output Current |
---|---|---|
VFD-S-3-010-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 1 HP/0.75 kW | 2.5 A |
VFD-S-3-020-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 2 HP/1.5 kW | 3.7 A |
VFD-S-3-030-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 3 HP/2.2 kW | 5.1 A |
VFD-SH-3-050-B-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 5 HP/3.7 kW, Heavy Duty | 9 A |
VFD-SN-3-075-B-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 7.5 HP/5.5 kW, Normal duty | 17 A |
VFD-SH-3-075-B-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 7.5HP/5.5kW, Heavy duty | 13 A |
VFD-SN-3-100-B-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 10HP/7.5kW, Normal Duty | 25 A |
VFD-SH-3-100-B-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 10HP/7.5kW. Heavy Duty | 17 A |
VFD-SH-3-150-B-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 15HP/11kW. Heavy Duty | 25 A |
VFD-SN-3-200-B-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 20 HP/15 kW, Normal duty | 37 A |
VFD-SH-3-200-B-415V | 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 20 HP/15 kW, Heavy duty | 32 A |
Write Your Own Review
Downloads
Related Products
Check items to add to the cart or
-

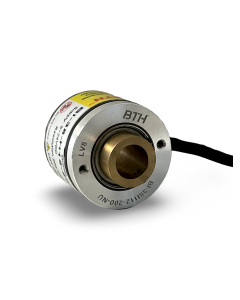

BI-38-H12-200-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 200, NPN, 5~24V DCSpecial Price ₹4,705.80 Regular Price ₹7,590.00
-

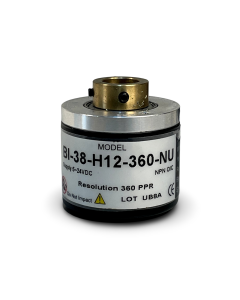

BI-38-H12-360-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 360, NPN, 5~24V DCSpecial Price ₹4,705.80 Regular Price ₹7,590.00
-

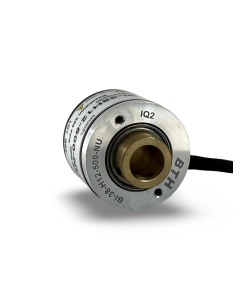

BI-38-H12-500-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 500, NPN, 5~24V DCSpecial Price ₹4,705.80 Regular Price ₹7,590.00
-

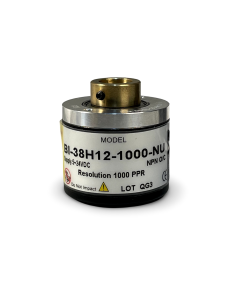

BI-38-H12-1000-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 1000, NPN, 5~24V DCSpecial Price ₹4,705.80 Regular Price ₹7,590.00
-
BI-38-H12-1024-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 1024, NPN, 5~24V DCSpecial Price ₹4,705.80 Regular Price ₹7,590.00
-

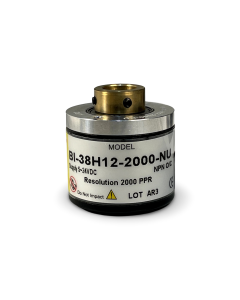

BI-38-H12-2000-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 2000, NPN, 5~24V DCSpecial Price ₹5,319.60 Regular Price ₹8,580.00
-
BI-38-H12-2500-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 2500, NPN, 5~24V DCSpecial Price ₹5,319.60 Regular Price ₹8,580.00
-

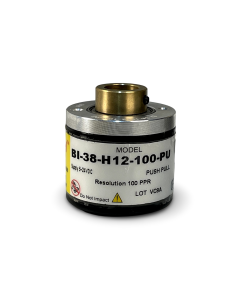

BI-38-H12-100-PU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 100, Push Pull, 5~24V DCSpecial Price ₹4,705.80 Regular Price ₹7,590.00
-

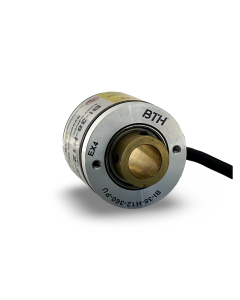

BI-38-H12-360-PU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 360, Push Pull, 5~24V DCSpecial Price ₹4,705.80 Regular Price ₹7,590.00
-

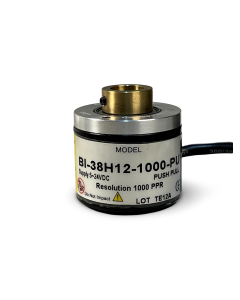

BI-38-H12-1000-PU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 1000, Push Pull, 5~24V DCSpecial Price ₹4,705.80 Regular Price ₹7,590.00
-

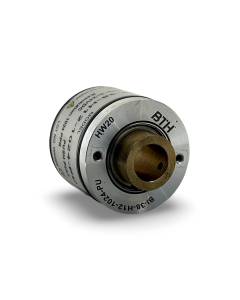

BI-38-H12-1024-PU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 1024, Push Pull, 5~24V DCSpecial Price ₹4,705.80 Regular Price ₹7,590.00
-

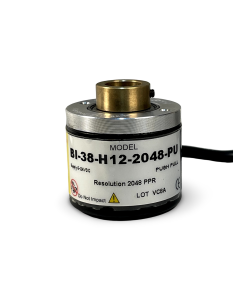

BI-38-H12-2048-PU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 2048, Push Pull, 5~24V DCSpecial Price ₹5,319.60 Regular Price ₹8,580.00
-

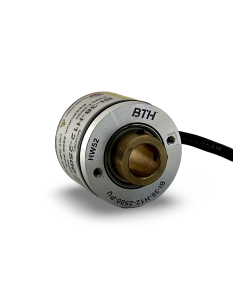

BI-38-H12-2500-PU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 2500, Push Pull, 5~24V DCSpecial Price ₹5,319.60 Regular Price ₹8,580.00
-

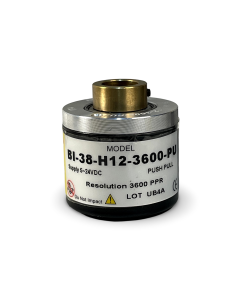

BI-38-H12-3600-PU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 3600, Push Pull, 5~24V DCSpecial Price ₹5,797.00 Regular Price ₹9,350.00
-

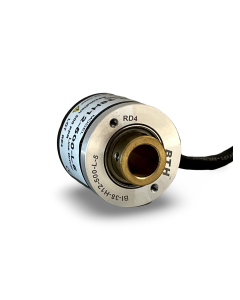

BI-38H12-500-L-5||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 500, Line Driver, 5V DCSpecial Price ₹5,552.85 Regular Price ₹8,956.20
-

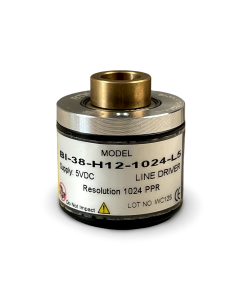

BI-38-H12-1024-L-5||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 1024, Line Driver, 5V DCSpecial Price ₹4,705.80 Regular Price ₹7,590.00
-
