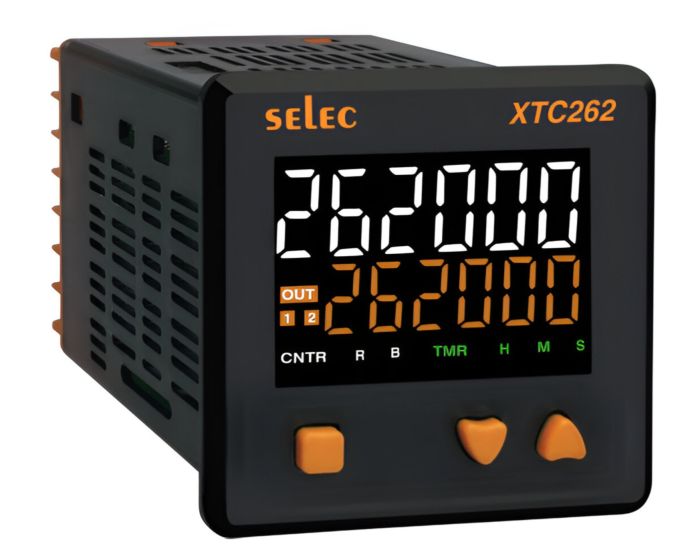

Selec XTC262, 6+6 Digit Dual Display, Multifunction Digital Timer + Counter, Size 72x72mm, Panel Mount
In stock
SKU
XTC262
Special Price
₹1,960.32
Regular Price
₹4,084.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
Display Type | 6 (White) + 6 (Orange) digits dual display |
Relay Contact | 2 SPDT |
Range | Timer : 9999.99/99999.9/999999 sec, 9999.59 min : sec / 99999.9 min, 999999 min 9999.59 hr: min / 9 9999.9/999999 hr Counter : Selectable least count 0.0001, 0.001, 0.01, 0.1 &1 |
Operating Modes | Timer : On delay, Interval, Cyclic On first, Cyclic Off first, Instantaneous + Delayed at start pulse, Instantaneous + Delayed at power on, Motor reverse, Batch. Counter : ON delay, Interval, Time pulse repeat, Auto reset Rate : HA/LA/BAND |
Start Input | Pulse, Gate, Level |
Reset | Front, Remote |
Counting Direction | Unidirectional, Bi – directional, Quadrature |
Features | Memory Retention, Batch Counting, Rate Indication |
Sensor type | NPN, PNP, Potential Free Contact |
Supply Voltage | 90 to 270V AC / DC |
Size | 72 x 72 mm |
Mounting Type | Panel Mount |
Certification | CE |
Product Code | Output 1 | Output 2 | Supply Voltage | Certification |
---|---|---|---|---|
XTC262 | Relay (5A) | Relay (5A) | 90 to 270V AC/DC | CE |
