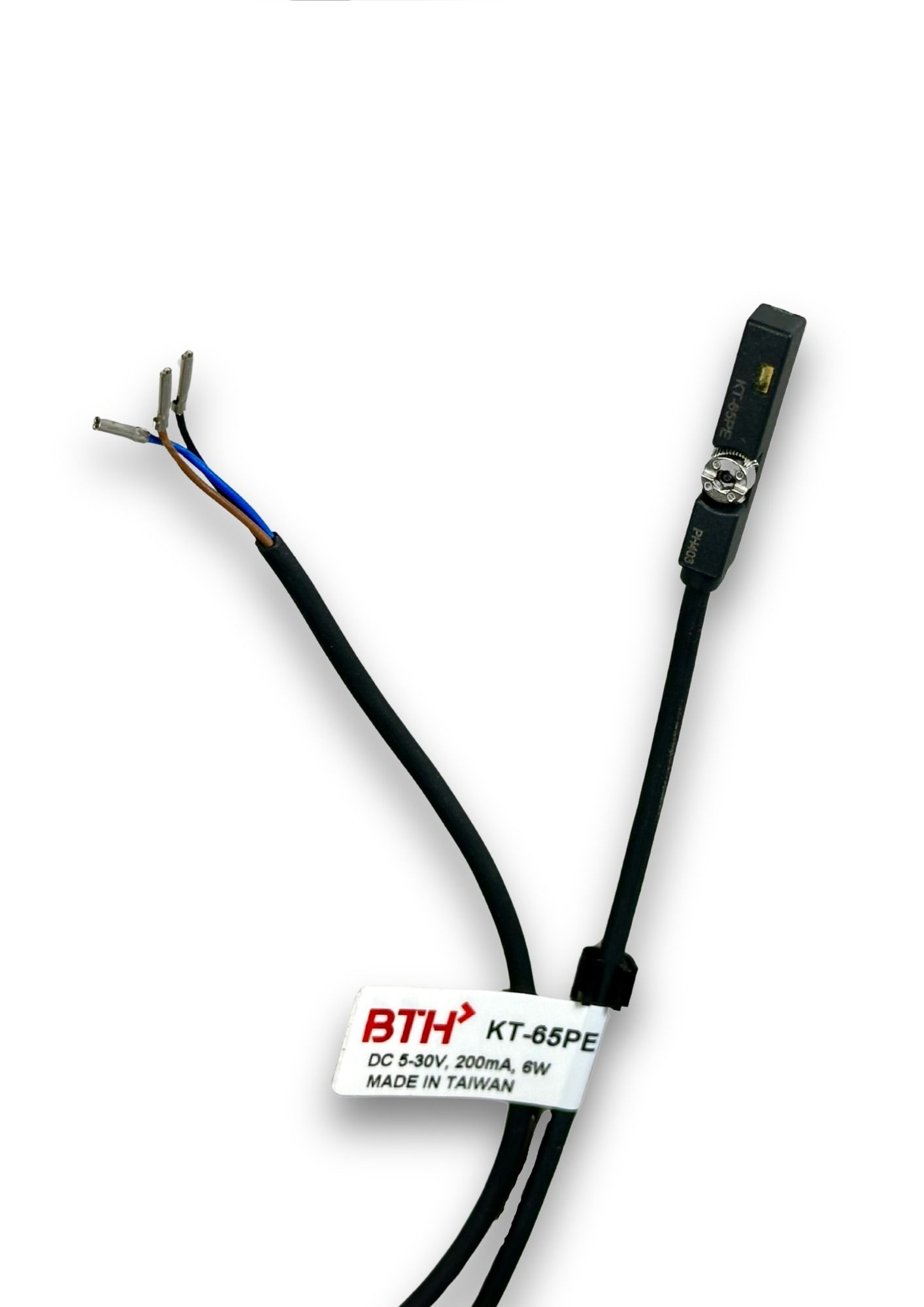

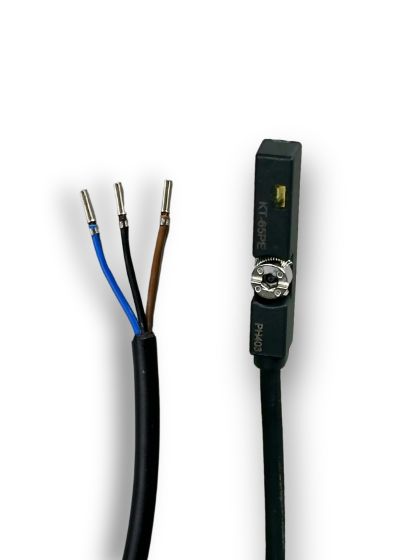

KT-65PE-2M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~30V DC

KT-65PE-2M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~30V DC

KT-65PE-2M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~30V DC

KT-65PE-2M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~30V DC

Be the first to review this product

In stock

SKU

KT-65PE-2M

Special Price ₹897.00 Regular Price ₹1,380.00

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Wiring Method: 3 Wire
Switching Logic: Solid State Output Normally Open
Sensor Type: PNP Current Sourcing
Operating Voltage: 5 ~ 30 V DC
Switching Current: 200mA max.
Contact Rating *1: 6 W max.
Current Consumption: 6 mA @ 24V DC max.
Voltage Drop: 0.5 V @ 200 mA max.
Leakage Current: 0.01 mA max.
Indicator: YELLOW LED
Cable: ø2.8, 3C, PUR
Operating Frequency: 1000Hz
Magnet Requirement *2: 40~1000 Gauss
Temperature Range: -10 ~ 70 ˚C
Shock *3: 50 G
Vibration *4: 9 G
Enclosure Classification: IEC 60529 IP67
Protection Circuit *5: 2, 3
