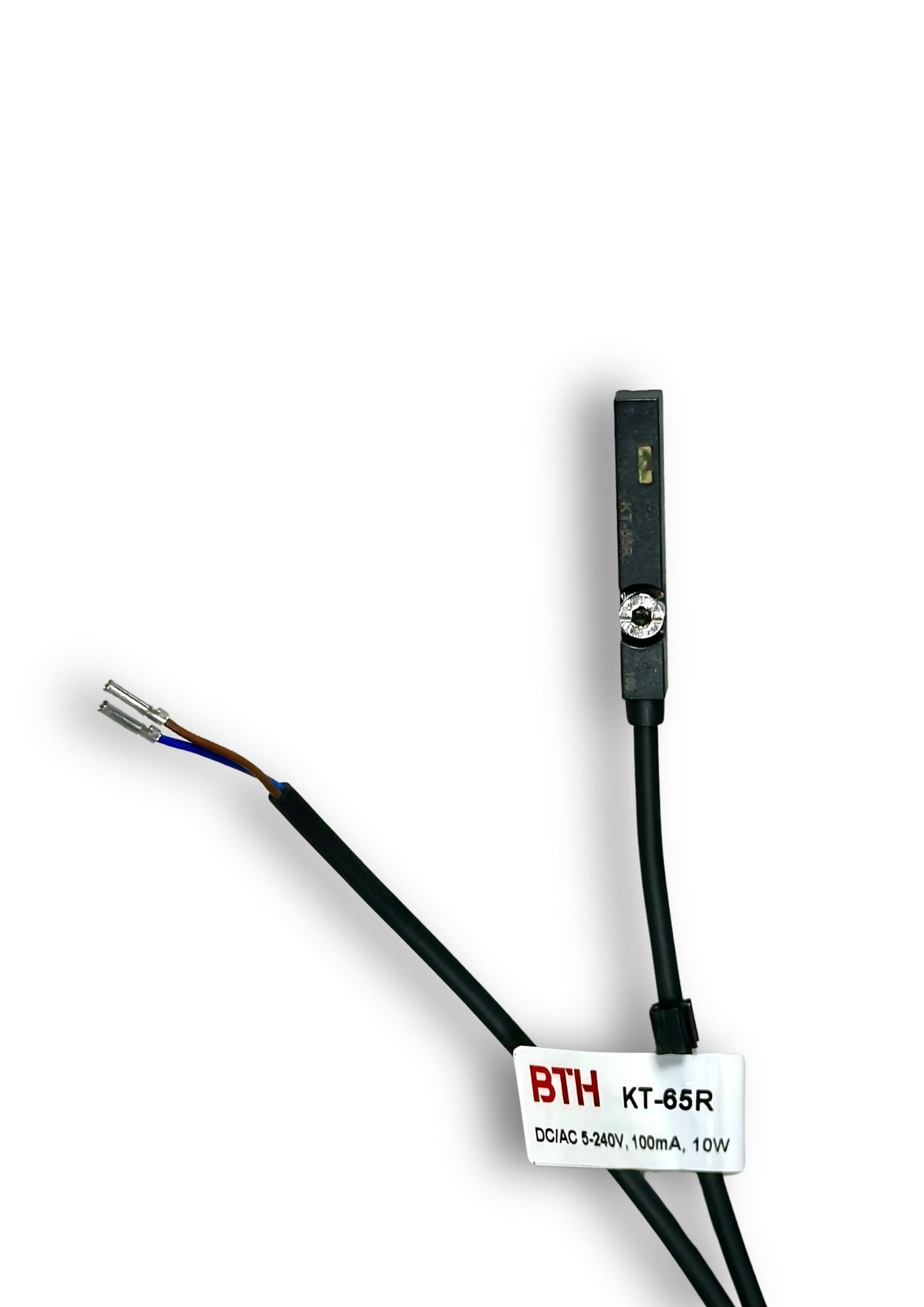

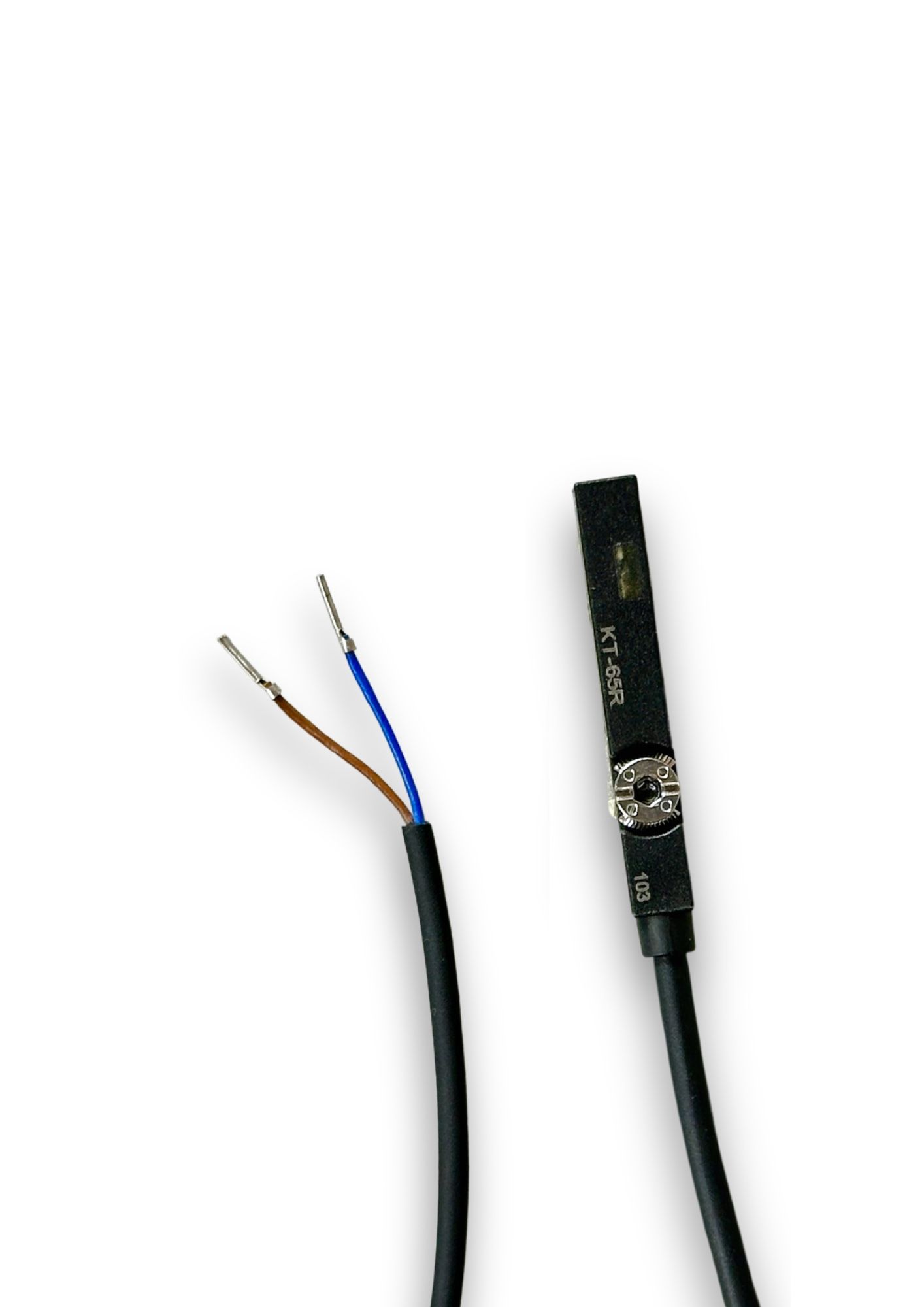

KT-65R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC
In stock
SKU
KT-65R-2M
Special Price
₹656.50
Regular Price
₹1,010.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Wiring Method: 2-Wire Type
- Switching Logic: SPST, Normally Open
- Sensor Type: Reed Switch
- Operating Voltage: 5 ~ 240 V DC / AC
- Switching Current: 100mA max.
- Contact Rating *1: 10 W max.
- Voltage Drop: 3.0 V max.
- Indicator: RED LED
- Cable: ø2.8, 2C, PUR
- Operating Frequency: 200Hz
- Magnet Requirement *2: 75 Gauss
- Temperature Range: -10 ~ 70 ˚C
- Shock *3: 30 G
- Vibration *4: 9 G
- Enclosure Classification: IEC 60529 IP67
- Protection Circuit *5: 1
No specifications available for this product.
