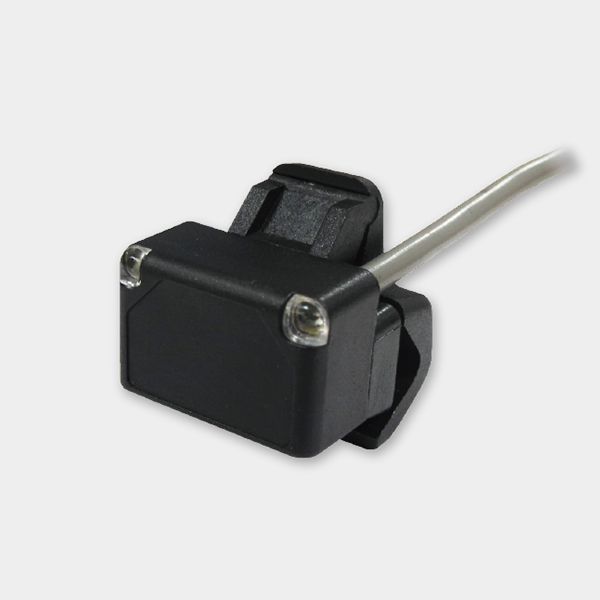

KT-09R-1M||Magnetic Sensors For Hydraulic & Pneumatic Cylinders

KT-09R-1M||Magnetic Sensors For Hydraulic & Pneumatic Cylinders

KT-09R-1M||Magnetic Sensors For Hydraulic & Pneumatic Cylinders

Be the first to review this product

Out of stock

SKU

KT-09R-1M

Special Price ₹1,220.46 Regular Price ₹2,034.10

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Wiring Method: 2-Wire Type
Switching Logic: SPST, Normally Open
Sensor Type: Reed Switch
Operating Voltage: 5 ~ 240 V DC / AC
Switching Current: 1 Amp. max.
Contact Rating: 30 W max.
Current Consumption: -
Voltage Drop: 3.5 V max.
Leakage Current: -
Indicator: Red LED
Cable: ø4.5, 2C, PVC
Operating Frequency: 200 Hz
Magnet Requirement: 80 Gauss
Temperature Range: -10 ~ 70 ˚C
Shock: 30 G
VIbration: 9 G
Enclosure Classification: IEC 60529 IP67
Protection Circuit: 4
