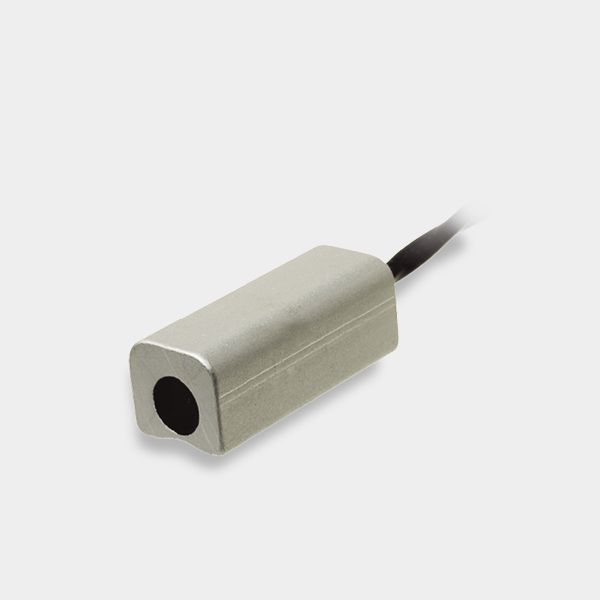

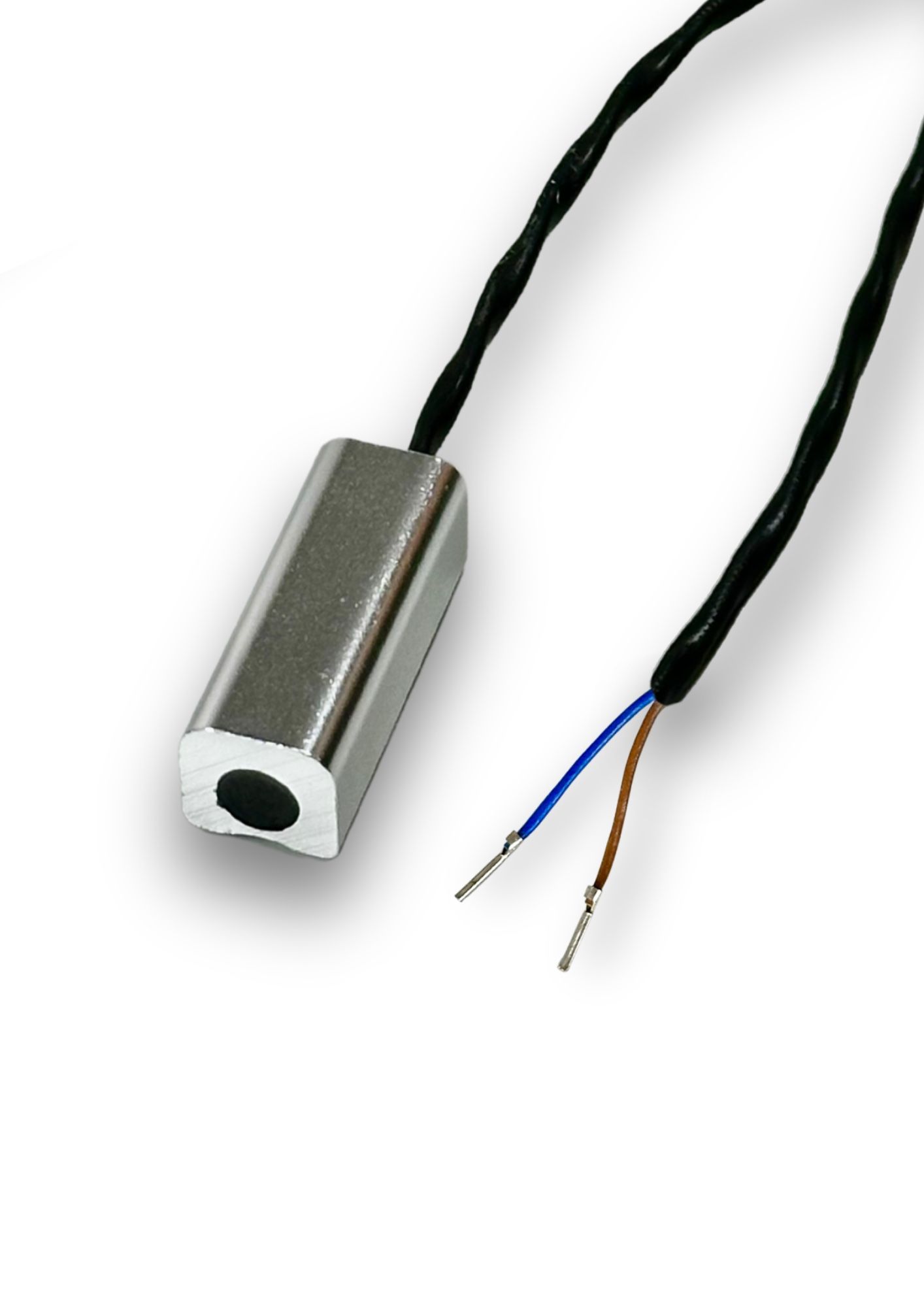

KT-31R-1M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

KT-31R-1M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

KT-31R-1M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

KT-31R-1M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

KT-31R-1M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

Be the first to review this product

Out of stock

SKU

KT-31R-1M

Special Price ₹1,079.00 Regular Price ₹1,660.00

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Wiring Method: 2-Wire Type
Switching Logic: SPST, Normally Open
Sensor Type: Reed Switch
Operating Voltage: 5 ~ 240 V DC / AC
Switching Current: 500 mA max.
Contact Rating: 10 W max.
Voltage Drop: 0.5 V max.
Cable: ø3,2C Teflon
Operating Frequency: 200 Hz
Magnet Requirement: 40 Gauss
Temperature Range: -10 ~ 140 ˚C
Shock: 30 G
Vibration: 9 G
Enclosure Classification: IEC 60529 IP67
Protection Circuit: 1
